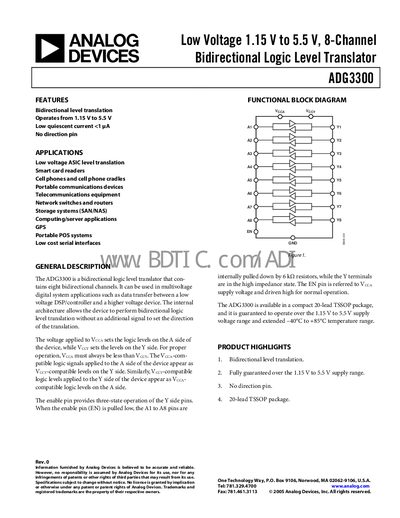

Analog Devices ADG3300 Logic Level Translator Datasheet
The ADG3300 provides bidirectional level translation without a direction pin, supporting supply voltages from 1.15 V to 5.5 V. It is offered in a 20‑lead TSSOP package and is qualified for industrial temperature ranges (‑40 °C to +85 °C).
Typical applications include low‑voltage ASIC interfaces, smart‑card readers, portable communications devices, and networking equipment. The device features low quiescent current (<1 pA leakage) and three‑state enable control.
Analog Devices ADG3300 specifications
| Supply Voltage (VccY) | 1.65 V to 5.5 V |
|---|---|
| Leakage Current | < 1 pA |
| Propagation Delay (A→Y) | 6 ns to 10 ns |
| Maximum Data Rate | 50 Mbps |
Source: Analog Devices ADG3300 Logic Level Translator Datasheet
All Analog Devices ADG3300 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate supported by the ADG3300?
The ADG3300 can handle data rates up to 50 Mbps.
From: Analog Devices ADG3300 Logic Level Translator Datasheet
How many channels are available in the ADG3300?
The device contains eight bidirectional channels.
Does the ADG3300 require a direction pin for level translation?
No, the ADG3300 performs bidirectional translation without a separate direction pin.
What is the supply voltage range for the ADG3300?
The ADG3300 operates from 1.15 V to 5.5 V.
From: Analog Devices ADG3300 Logic Level Translator Datasheet
How many channels does the ADG3300 have?
It provides eight bidirectional channels.
From: Analog Devices ADG3300 Logic Level Translator Datasheet
