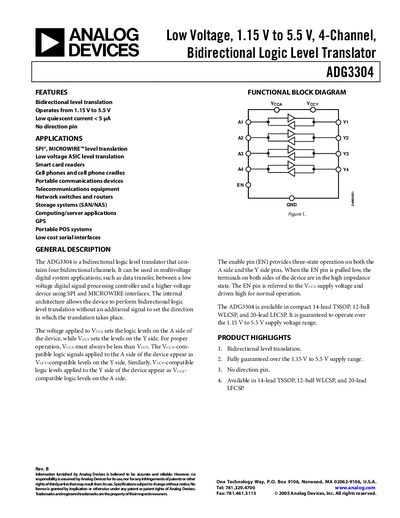

The ADG3304 is a low-voltage, 1.15 V to 5.5 V, 4-channel, bidirectional logic level translator. It can be used in multivoltage digital system applications, such as data transfer, between a low voltage and a high voltage device.
The ADG3304 provides bidirectional level translation for digital signals between low‑voltage controllers and higher‑voltage devices. It operates over a supply range of 1.15 V to 5.5 V, requires no direction pin, and features an enable pin for three‑state operation.
Available in 14‑lead TSSOP, 12‑ball WLCSP, and 20‑lead LFCSP packages, the device offers low quiescent current (<5 pA) and supports data rates up to 50 Mbps. Detailed specifications, pin configurations, and typical performance curves are provided in the document.
| Supply Voltage Range (Y side) | 1.65 V to 5.5 V |
|---|---|
| Quiescent Current | <5 pA |
| Maximum Data Rate | 50 Mbps |
| Propagation Delay (A→Y) | 6 ns to 10 ns |
| Channel‑to‑Channel Skew (A→Y) | 2 ns to 4 ns |
The ADG3304 can handle data rates up to 50 Mbps.
The quiescent current is less than 5 pA.
It is offered in 14‑lead TSSOP, 12‑ball WLCSP, and 20‑lead LFCSP packages.
