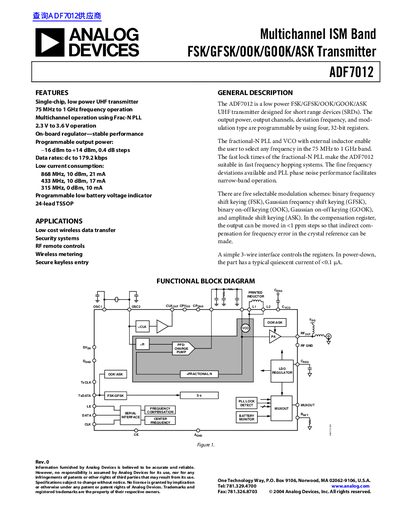

Analog Devices ADF7012 Multichannel ISM Band Transmitter Datasheet
The ADF7012 is a single-chip, low-power UHF transmitter designed for short-range devices (SRDs). It supports multichannel operation using a fractional-N PLL and operates with a supply voltage range of 2.3 V to 3.6 V. The device features an on-board regulator and programmable output power ranging from -16 dBm to +14 dBm in 0.4 dB steps.
Read onlineAnalog Devices ADF7012 specifications
| Operating Frequency Range | 75 MHz to 1 GHz |
|---|---|
| Supply Voltage | 2.3 V to 3.6 V |
| Output Power Range | -16 dBm to +14 dBm |
| Data Rate (FSK/GFSK) | up to 179.2 kbps |
| Modulation Schemes | FSK, GFSK, OOK, GOOK, ASK |
| Package Type | 24-lead TSSOP |
Source: Analog Devices ADF7012 Multichannel ISM Band Transmitter Datasheet
All Analog Devices ADF7012 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range?
The device operates from -40°C to +85°C.
From: Analog Devices ADF7012 Multichannel ISM Band Transmitter Datasheet
What are the typical current consumptions at 868 MHz?
Current consumption ranges from 14 mA (0 dBm) to 32 mA (14 dBm).
From: Analog Devices ADF7012 Multichannel ISM Band Transmitter Datasheet
What supply voltage range does the ADF7012 require?
The device operates from 2.3 V to 3.6 V on the DVDD pin.
From: Analog Devices ADF7012 Multichannel ISM Band Transmitter Datasheet
What is the maximum output power of the ADF7012?
The transmitter can output up to +14 dBm, programmable in 0.4 dB steps.
From: Analog Devices ADF7012 Multichannel ISM Band Transmitter Datasheet
What is the operating frequency range of the ADF7012?
The ADF7012 operates from 75 MHz up to 1 GHz.
What supply voltage does the ADF7012 require?
It requires a digital supply voltage (DVDD) between 2.3 V and 3.6 V.
