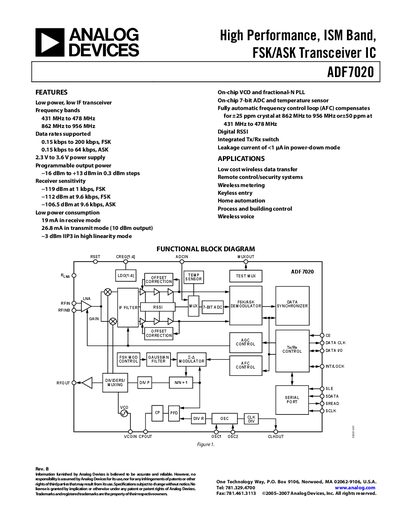

Analog Devices ADF7020 Transceiver IC Handbook
The ADF7020 is a low‑power, highly integrated FSK/ASK/OOK transceiver designed for license‑free ISM bands (431‑478 MHz, 862‑956 MHz) and the Japanese RFID band at 950 MHz. It offers programmable output power, on‑chip VCO, fractional‑N PLL, and an on‑chip ADC with temperature sensor.
The document includes detailed specifications, timing characteristics, pin descriptions, functional block diagram, and application notes such as channel selection, power‑down modes, and RF performance. It also provides ordering information and mechanical dimensions for the LFCSP package.
Analog Devices ADF7020 specifications
| Supply voltage | 2.3 V to 3.6 V |
|---|---|
| Transmit power range | –20 dBm to +13 dBm |
| Receiver sensitivity (1 kbps) | –119 dBm |
| Data rate (FSK) | 0.15 kbps to 200 kbps |
All Analog Devices ADF7020 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the programmable output power range?
The output power can be programmed from –20 dBm up to +13 dBm.
What supply voltage does the device require?
The ADF7020 operates from a 2.3 V to 3.6 V supply.
What ISM frequency bands does the ADF7020 support?
It operates in the 433 MHz, 868 MHz and 915 MHz ISM bands, and also supports the 950 MHz Japanese RFID band.
What is the supply voltage range for the ADF7020?
The device can be powered from 2.3 V to 3.6 V.
How is the output power programmed?
The output power can be programmed in 0.3 dB steps from –16 dBm to +13 dBm.
