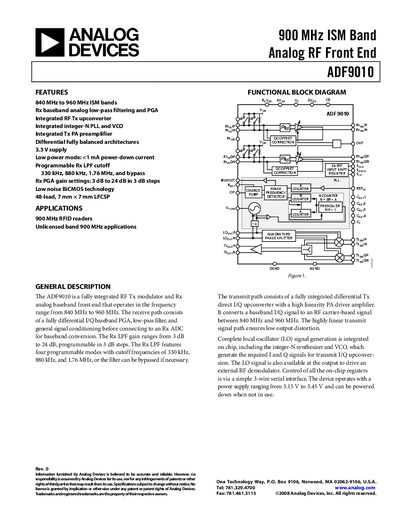

Analog Devices ADF9010 RF Front End Datasheet
The ADF9010 RF front‑end integrates a transmit modulator, receive baseband PGA, programmable low‑pass filters, and a complete integer‑N PLL with VCO. It operates from 840 MHz to 960 MHz and supports low‑power modes with supply voltages of 3.15 V‑3.45 V.
Key features include differential I/Q up‑conversion, programmable Rx gain (3 dB‑24 dB), multiple filter cutoff modes, and a 3‑wire serial interface for register control. The device is supplied in a 48‑lead LFCSP package.
Analog Devices ADF9010 specifications
| Operating Frequency Range | 840 MHz – 960 MHz |
|---|---|
| Supply Voltage | 3.15 V – 3.45 V |
| Output Power (typical) | 3 dBm |
| Output P1dB | 10 dBm |
| Carrier Feedthrough | -40 dBm |
| Sideband Suppression | -46 dBc |
| Rx Baseband PGA Gain Range | 3 dB – 24 dB (3 dB steps) |
| Tx Modulator Current | 140 mA (full power) |
All Analog Devices ADF9010 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating frequency range of the ADF9010?
The device operates from 840 MHz to 960 MHz.
What supply voltage does the ADF9010 require?
It requires a supply voltage between 3.15 V and 3.45 V.
What is the operating frequency range of the ADF9010?
The device operates from 840 MHz to 960 MHz.
What supply voltage does the ADF9010 require?
It requires an analog and digital supply between 3.15 V and 3.45 V.
