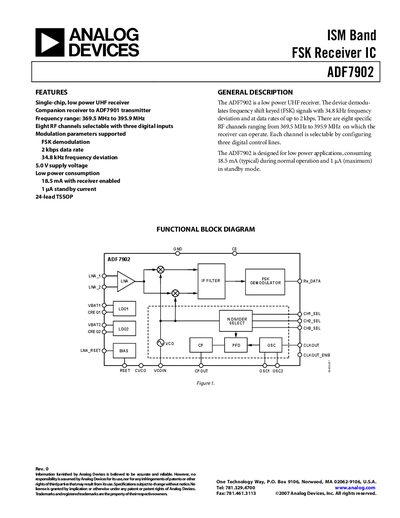

Analog Devices ADF7902 ISM Band FSK Receiver IC Datasheet
The ADF7902 is a single‑chip, low‑power UHF receiver designed for ISM‑band applications. It demodulates FSK signals with a 34.8 kHz deviation at data rates up to 2 kbps and offers eight selectable RF channels between 369.5 MHz and 395.9 MHz, controlled by three digital inputs.
The device operates from a 5 V supply, drawing 18.5 mA in normal receive mode and as little as 1 µA in standby. Detailed specifications, pin functions, typical performance plots, and example application circuits are provided to aid integration into microcontroller‑based designs.
Analog Devices ADF7902 specifications
| Supply Voltage | 5.0 V |
|---|---|
| Frequency Range | 369.5 MHz to 395.9 MHz |
| Number of RF Channels | 8 |
| Data Rate | 2 kbps |
| Frequency Deviation | ±34.8 kHz |
| Input Sensitivity | -110 dBm |
| IF Filter Bandwidth | 200 kHz (‑3 dB) |
| Adjacent Channel Rejection | 60 dB @ 1 MHz offset |
| Current Consumption (Receiver Enabled) | 18.5 mA |
| Current Consumption (Sleep Mode) | 1 µA |
| Crystal Reference Frequency | 9.8304 MHz ±25 ppm |
| Input High Voltage | 0.7 V |
| Input Low Voltage | 0.2 V |
| Output High Voltage | 4.5 V |
| Output Low Voltage | 0.4 V |
| Output Drive Level | 2 mA |
Source: Analog Devices ADF7902 ISM Band FSK Receiver IC Datasheet
All Analog Devices ADF7902 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the ADF7902 require?
The device operates from a 5.0 V supply.
From: Analog Devices ADF7902 ISM Band FSK Receiver IC Datasheet
How many RF channels can be selected on the ADF7902?
Eight RF channels are selectable using three digital inputs.
From: Analog Devices ADF7902 ISM Band FSK Receiver IC Datasheet
What supply voltage does the ADF7902 require?
The device operates from a 5.0 V supply.
How many RF channels can be selected on the ADF7902?
Eight RF channels are selectable via three digital inputs.
