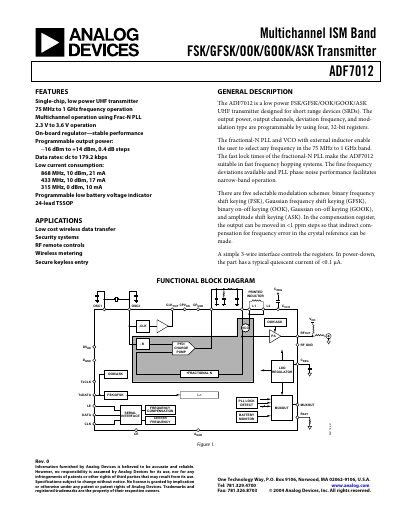

This document describes a multichannel ISM band FSK/GFSK/OOK/GOOK/ASK transmitter ADF7012 Rev. 0. The product is a single-chip, low power UHF transmitter that operates in the frequency range of 75 MHz to 1 GHz. It supports multichannel operation using Frac-N PLL technology. The operating voltage range is 2.3 V to 3.6 V. It has programmable output power, data rates, and low current consumption. It is suitable for applications such as low-cost wireless data transfer, security systems, RF remote controls, wireless metering, and secure keyless entry.
The ADF7012 is a single‑chip UHF transmitter covering 75 MHz to 1 GHz with programmable output power, data rate, and modulation scheme. It uses a fractional‑N PLL and an external inductor for frequency selection and offers fast lock times suitable for frequency‑hopping applications.
The device operates from 2.3 V to 3.6 V, provides up to +14 dBm output, and consumes low current in power‑down mode (<0.1 µA). Pin‑out, timing diagrams, and detailed register maps are included for system integration.
| Operating Frequency | 75 MHz – 1 GHz |
|---|---|
| Supply Voltage (DVDD) | 2.3 V – 3.6 V |
| Output Power Range | -16 dBm to +14 dBm |
| Maximum Data Rate | 179.2 kbps (FSK/GFSK) |
| Typical Quiescent Current (Power‑Down) | <0.1 µA |
| Current Consumption @ 915 MHz, 0 dBm | 16 mA (DVDD = 3.6 V) |
The device operates from 2.3 V to 3.6 V on the DVDD pin.
The transmitter can output up to +14 dBm, programmable in 0.4 dB steps.
It supports binary FSK, Gaussian FSK, binary OOK, Gaussian OOK, and ASK.
Typical quiescent current in power‑down is less than 0.1 µA.
