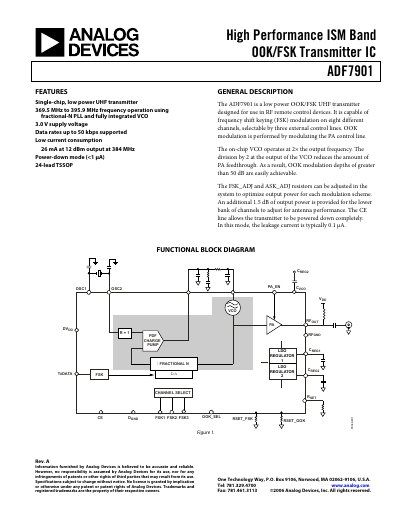

Analog Devices ADF7901 Datasheet
The ADF7901 is a single‑chip, low‑power UHF transmitter designed for RF remote‑control devices. It operates from 369.5 MHz to 395.9 MHz using a fractional‑N PLL and integrated VCO, supports OOK and FSK modulation at data rates up to 50 kbps, and offers eight channel selections via three external control lines. Power‑down mode draws less than 1 µA.
The datasheet provides detailed specifications, pin functions, typical performance graphs, layout guidelines, and ordering information for the 24‑lead TSSOP package. It also includes recommended loop‑filter components and ESD handling precautions.
Analog Devices ADF7901 specifications
| Supply voltage (VDD) | 3.0 V |
|---|---|
| Frequency range | 369.5 MHz – 395.9 MHz |
| Number of channels | 8 |
| Maximum output power | 12 dBm |
| Transmit current consumption (12 dBm) | 26 mA |
| Power‑down current | <1 µA |
| Maximum data rate | 50 kbps |
| Modulation depth (OOK) | 83 dB |
| Operating temperature range | 0 °C – 50 °C |
Source: Analog Devices ADF7901 Datasheet
All Analog Devices ADF7901 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the ADF7901 require?
The device operates from a 3.0 V supply.
How many selectable channels are available on the ADF7901?
It provides eight channels that can be selected with three external control lines.
What supply voltage does the ADF7901 require?
The device operates from a 3.0 V supply.
How many channels can be selected on the ADF7901?
Eight channels are selectable via three external control lines.
