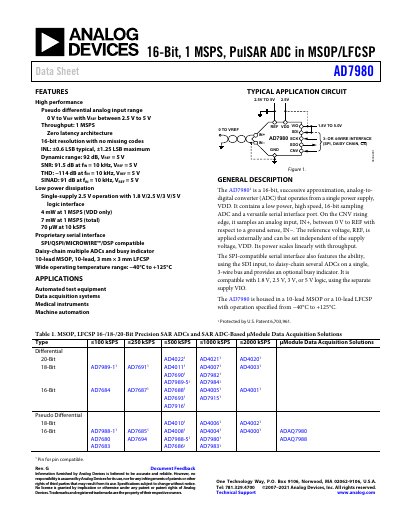

Analog Devices AD7980 16-Bit ADC Data Sheet
The AD7980 is a high-performance pseudo differential analog input range ADC operating from a single power supply. It features a zero latency architecture with 16-bit resolution and no missing codes, suitable for automated test equipment and data acquisition systems.
The device supports SPI/QSPI/MICROWIRE/DSP compatible serial interfaces and allows for daisy-chaining multiple ADCs on a single bus. It operates over a wide temperature range of −40°C to +125°C in either 10-lead MSOP or LFCSP packages.
Analog Devices AD7980 specifications
| Resolution | 16 Bits |
|---|---|
| Throughput Rate | 1 MSPS |
| Dynamic Range (VREF = 5 V) | 92 dB |
| Signal-to-Noise Ratio (fIN = 10 kHz) | 91.5 dB |
| Operating Temperature Range | -40°C to +125°C |
| Power Dissipation (Total, Grade) | 7.0 mW at 1 MSPS |
| Package Options | MSOP, LFCSP |
All Analog Devices AD7980 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the resolution of the AD7980?
The device provides a 16-bit resolution with no missing codes.
Is the AD7980 compatible with SPI interfaces?
Yes, it features a proprietary serial interface that is SPI/QSPI/MICROWIRE/DSP compatible.
What is the resolution of the AD7980?
The AD7980 provides 16‑bit resolution with no missing codes.
What is the maximum sampling rate of the AD7980?
It can sample at up to 1 MSPS.
