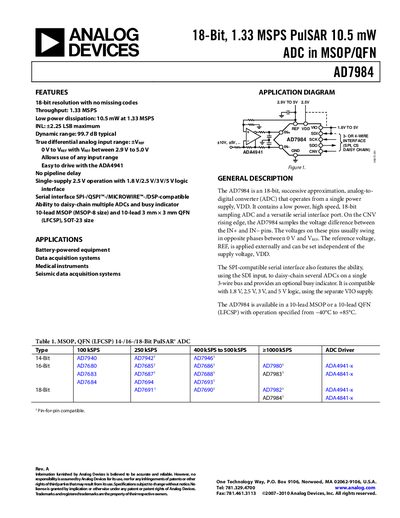

Analog Devices AD7984 Datasheet
The AD7984 is an 18‑bit successive‑approximation analog‑to‑digital converter (ADC) that operates from a single 2.5 V supply. It provides a true differential input range and supports multiple logic levels (1.8 V, 2.5 V, 3 V, 5 V). The device includes a serial interface compatible with SPI, QSPI, Microwire and DSP protocols and can be daisy‑chained.
Key features include 1.33 MSPS throughput, 10.5 mW power dissipation at full speed, 99.7 dB dynamic range, and a 10‑lead MSOP or 10‑lead QFN (LFCSP) package. The datasheet also covers pin configurations, timing specifications, absolute maximum ratings, and layout recommendations for optimal analog‑digital separation on the PCB.
Analog Devices AD7984 specifications
| Resolution | 18 bits |
|---|---|
| Throughput | 1.33 MSPS |
| Power Dissipation | 10.5 mW (at 1.33 MSPS) |
| Reference Voltage Range | 2.9 V to 5.1 V |
| Dynamic Range | 99.7 dB (typical) |
| Supply Voltage (VDD) | 2.5 V (typical) |
| Operating Temperature Range | -40 °C to +85 °C |
Source: Analog Devices AD7984 Datasheet
All Analog Devices AD7984 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum conversion rate of the AD7984?
The AD7984 can convert at up to 1.33 MSPS.
What supply voltage does the AD7984 require?
The device operates from a 2.5 V supply (VDD) with VIO ranging from 2.3 V to 5.5 V.
What temperature range can the AD7984 operate in?
The AD7984 is specified for operation from –40 °C to +85 °C.
Which digital interfaces are supported by the AD7984?
It supports SPI, QSPI, Microwire and DSP‑compatible serial interfaces, with optional daisy‑chain and busy‑indicator features.
