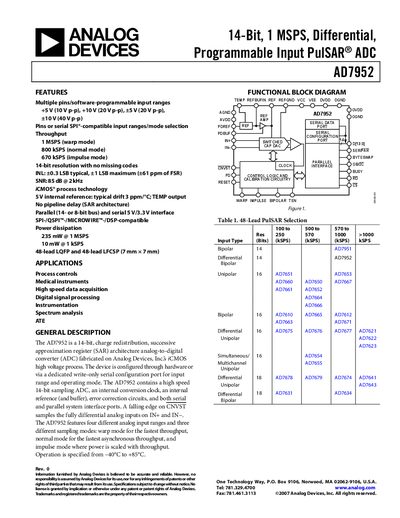

Analog Devices AD7952 14‑Bit 1 MSPS Differential Programmable Input PulSAR ADC Handbook
The AD7952 ADC from Analog Devices provides 14‑bit resolution with no missing codes and supports up to 1 MSPS throughput in warp mode. It offers multiple programmable input ranges (±5 V, ±10 V, +5 V, +10 V) and can be configured via hardware pins or a serial configuration port.
The device includes both parallel and serial (SPI/QSPI/MICROWIRE/DSP) interfaces, an internal 5 V reference, and operates from –40 °C to +85 °C. Detailed specifications, pin descriptions, timing diagrams, and application guidelines are provided throughout the handbook.
Analog Devices AD7952 specifications
| Resolution | 14 Bits |
|---|---|
| Maximum Throughput (warp mode) | 1 MSPS |
| Power Dissipation @ 1 MSPS | 235 mW |
| Input Voltage Range (Bipolar) | ±10 V (40 V p‑p) |
| Operating Temperature Range | -40 °C to +85 °C |
Source: Analog Devices AD7952 14‑Bit 1 MSPS Differential Programmable Input PulSAR ADC Handbook
All Analog Devices AD7952 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the AD7952?
The AD7952 can sample at up to 1 MSPS in warp mode.
From: Analog Devices AD7952 14‑Bit 1 MSPS Differential Programmable Input PulSAR ADC Handbook
What input voltage ranges does the AD7952 support?
It supports ±5 V, ±10 V, +5 V and +10 V programmable input ranges.
From: Analog Devices AD7952 14‑Bit 1 MSPS Differential Programmable Input PulSAR ADC Handbook
What input voltage ranges are available?
The device supports +5 V (10 V p‑p), +10 V (20 V p‑p), +5 V (20 V p‑p), and +10 V (40 V p‑p) ranges.
What PCB layout practice is recommended for analog and digital grounds?
Separate analog and digital ground planes should be used and joined at a single point near the AD7952.
What is the resolution of the AD7952?
It provides a 14‑bit resolution with no missing codes.
What temperature range can the AD7952 operate in?
It is specified for operation from –40 °C to +85 °C.
