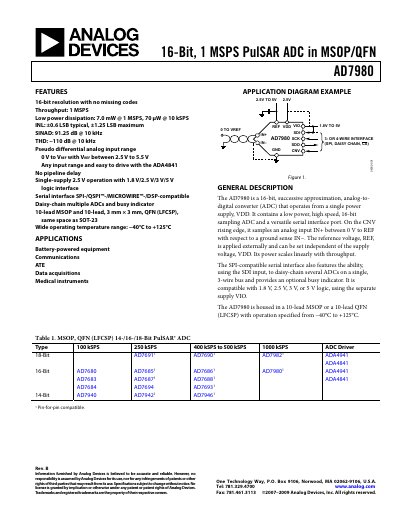

The AD7980 is a 16-bit, 1 MSPS PulSAR ADC with features such as low power dissipation, high accuracy, and single-supply operation. It can be widely used in battery-powered equipment, communications, ATE, data acquisition, and medical instrument applications.
The AD7980 is a 16‑bit successive‑approximation ADC that operates from a single 2.5 V supply and supports 1 MSPS conversion rates. It offers a serial SPI‑compatible interface, optional daisy‑chain capability, and a wide input voltage range from 0 V to the external reference.
The device is offered in 10‑lead MSOP and QFN (LFCSP) packages, operates from –40 °C to +125 °C, and is suited for battery‑powered equipment, communications, ATE, data acquisition, and medical instruments.
| Resolution | 16 bits |
|---|---|
| Maximum Throughput | 1 MSPS |
| Power Dissipation (1 MSPS) | 7.0 mW |
| Integral Nonlinearity (typical) | ±0.6 LSB |
| SINAD (10 kHz input) | 91.25 dB |
| THD (10 kHz input) | −110 dB |
| Analog Input Voltage Range | 0 V to VREF (2.5 V–5.5 V) |
| Supply Voltage (VDD) | 2.5 V |
| Digital I/O Voltage (VIO) | 2.3 V to 5.5 V |
| Operating Temperature Range | −40 °C to +125 °C |
The AD7980 provides 16‑bit resolution with no missing codes.
It can sample at up to 1 MSPS.
Power dissipation is 7.0 mW at 1 MSPS.
The device operates from a 2.5 V VDD supply.
