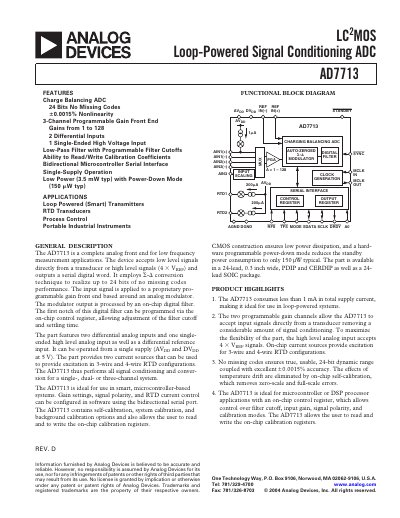

The AD7713 is a 24-bit low power AD converter from Analog Devices, with 3-channel programmable gain front end, which can be used in loop powered (smart) transmitters, RTD transducers, process control and portable industrial instruments.
The AD7713 is a 24‑bit charge‑balancing ADC designed for loop‑powered signal‑conditioning applications. It features three programmable‑gain channels, low‑power operation (typical 3.5 mW), and a bidirectional serial interface for microcontroller integration.
The document includes detailed functional block diagrams, absolute maximum ratings, timing characteristics, and ordering information for PDIP, CERDIP, and SOIC packages, making it a complete reference for designers and engineers.
| Resolution | 24 bits |
|---|---|
| Typical Power Consumption (Normal Mode) | 3.5 mW |
| Package Options | PDIP, CERDIP, SOIC |
| Integral Nonlinearity | ±0.0015 % of FSR |
| Standby Power‑Down Current | 300 µW max |
The AD7713 typically consumes about 3.5 mW in normal mode.
The device is offered in PDIP, CERDIP, and SOIC packages.
The device is designed for a 2 MHz clock, with guaranteed operation down to 400 kHz.
