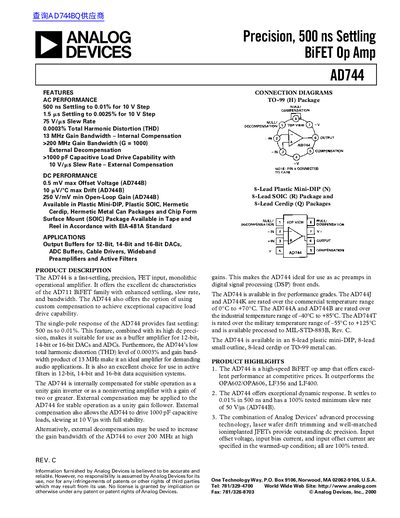

ANALOG DEVICES AD744 Precision 500 ns Settling BiFET Op Amp handbook
The AD744 is a fast-settling, precision, FET input, monolithic operational amplifier designed for high-speed applications. It combines the excellent DC characteristics of the BiFET family with enhanced settling, slew rate, and bandwidth. The device is available in various performance grades (J, K, A, B, T) covering commercial, industrial, and military temperature ranges.
Read onlineAnalog Devices AD744 specifications
| Settling Time to 0.01% | 500 ns |
|---|---|
| Gain Bandwidth | 13 MHz |
| Total Harmonic Distortion | 0.0003% |
| Input Offset Voltage (Max) | 0.5 mV |
| Capacitive Load Drive | >1000 pF |
| Operating Temperature (Industrial) | -40°C to +85°C |
Source: ANALOG DEVICES AD744 Precision 500 ns Settling BiFET Op Amp handbook
All Analog Devices AD744 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the settling time of the AD744?
The AD744 settles to 0.01% in 500 ns for a 10 V step.
From: ANALOG DEVICES AD744 Precision 500 ns Settling BiFET Op Amp handbook
Can the AD744 drive capacitive loads?
Yes, with external compensation, it can drive 1000 pF capacitive loads slewing at 10 V/us.
From: ANALOG DEVICES AD744 Precision 500 ns Settling BiFET Op Amp handbook
What is the settling time of the AD744?
The AD744 settles to 0.01 % in 500 ns.
How much capacitive load can the AD744 drive?
It can drive up to 1000 pF capacitive loads while maintaining a 10 V/µs slew rate.
