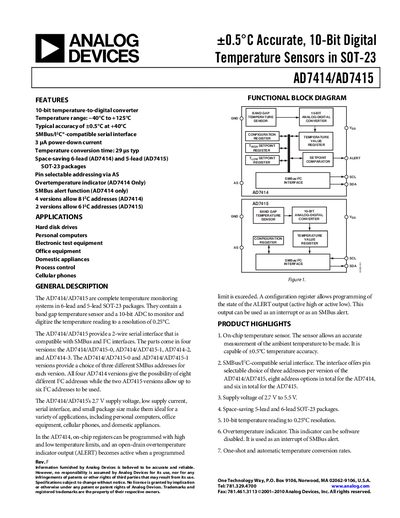

Analog Devices AD7414/AD7415 Datasheet Rev F
The AD7414 and AD7415 are 10‑bit digital temperature sensors offered in compact 5‑lead and 6‑lead SOT‑23 packages. They provide a SMBus/I²C‑compatible two‑wire serial interface, selectable I²C addresses, and an optional ALERT output for over‑temperature monitoring. Designed for low power consumption (3 pA power‑down) and a supply range of 2.7 V to 5.5 V, they are suited for applications such as hard‑disk drives, PCs, test equipment, and domestic appliances.
Key specifications include a temperature range of –40 °C to +125 °C, typical accuracy of ±0.5 °C at 40 °C, 10‑bit resolution (0.25 °C per LSB), and a conversion time of about 25 µs. The devices support up to eight I²C addresses for the AD7414 and six for the AD7415, and feature programmable high‑temperature limits and ALERT polarity.
Analog Devices AD7415 specifications
| Temperature range | -40 °C to +125 °C |
|---|---|
| Typical accuracy at 40 °C | ±0.5 °C |
| Resolution | 10 bits (0.25 °C per LSB) |
| Supply voltage | 2.7 V to 5.5 V |
| Power‑down current | 3 pA |
| Temperature conversion time | 25 µs typ |
| Update rate (one‑shot period) | 800 ms typ |
| I²C address options (AD7414) | 8 addresses |
| I²C address options (AD7415) | 6 addresses |
| Input high voltage | 24 V min |
| Output low voltage | 0.4 V max |
All Analog Devices AD7415 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What temperature range does the AD7414/AD7415 cover?
The sensors operate from –40 °C up to +125 °C.
What is the typical accuracy of the AD7414/AD7415 at 40 °C?
Typical accuracy is ±0.5 °C at a temperature of 40 °C.
What temperature range does the AD7414/AD7415 cover?
The devices operate from –40 °C up to +125 °C.
What is the typical accuracy of the sensors at 40 °C?
They achieve a typical accuracy of ±0.5 °C at 40 °C.
