Start here

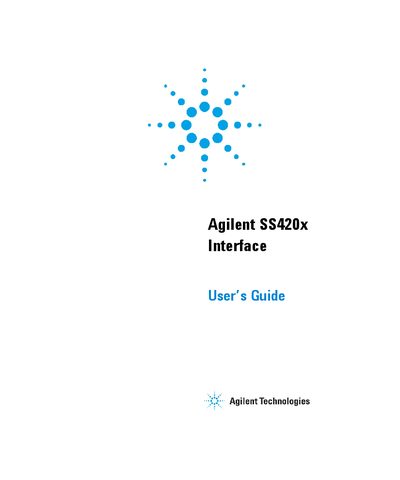

Agilent SS420x Interface User's Guide
The Agilent SS420x is an intelligent instrument interface box designed to collect analog data and input/output digital signals. It attaches to a controlling computer via a standard RS-232C serial interface, containing the circuitry of the 55420 interface card along with additional processing capabilities.
Read onlineAgilent SS420X specifications
| Memory (SS420x) | 128 Kb RAM |
|---|---|
| Memory (35900E) | 1024 Kb RAM |
| Analog Dynamic Range (SS420x) | >60dB |
| Analog Dynamic Range (35900E) | >140 dB (<2Hz) typical |
| Resolution | 24 Bit |
Source: Agilent SS420x/35900E Analog/Digital Converter Migration Guide for EZChrom Elite CDS
All Agilent SS420X documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How does EZChrom Elite communicate with the 35900E?
EZChrom Elite communicates with the 35900E over a LAN connection.
From: Agilent SS420x/35900E Analog/Digital Converter Migration Guide for EZChrom Elite CDS
Can the 35900E control an autosampler via BCD connector?
No, EZChrom Elite does not control the BCD connector used to control an autosampler.
From: Agilent SS420x/35900E Analog/Digital Converter Migration Guide for EZChrom Elite CDS
What software is the SS420x compatible with?
It works with the EZChrom Flite Chromatography Data System and the Agilent OL Operating System for the Laboratory.
From: Agilent SS420x High Resolution Chromatography Acquisition Module Product Leaflet
How does the SS420x handle PC power loss?
The unit has its own power supply and buffer, retaining an hour of data for each channel depending on the acquisition rate.
From: Agilent SS420x High Resolution Chromatography Acquisition Module Product Leaflet
What is the maximum number of channels for the SS420x?
The SS420x supports acquisition from up to four analog channels.
From: Agilent SS420x High Resolution Chromatography Acquisition Module Datasheet
What is the data acquisition rate range?
Data acquisition rates range from 0.1 Hz to 120 Hz depending on the base frequency used.
From: Agilent SS420x High Resolution Chromatography Acquisition Module Datasheet
