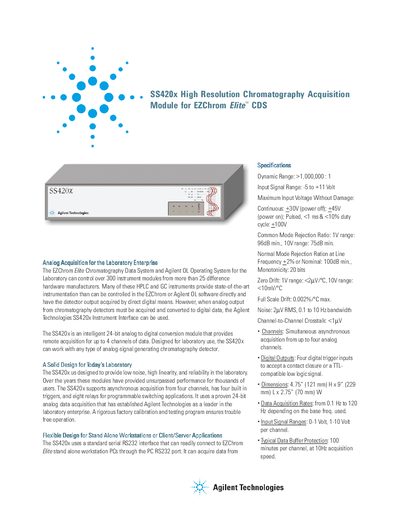

This document introduces the EZChrom Elite Chromatography Data System and Agilent OL Operating System for the Laboratory, as well as the Agilent Technologies SS420x Instrument Interface module. The EZChrom Elite and Agilent OL software can control over 300 instrument modules from more than 25 different hardware manufacturers. The SS420x module is an intelligent 24-bit analog to digital conversion module that can be used to acquire and convert analog output from chromatography detectors to digital data. The module is designed for laboratory use and provides low noise, high linearity, and reliability, delivering unmatched performance.
The Agilent SS420x is an intelligent 24-bit analog to digital conversion module designed for laboratory use. It provides remote acquisition for up to four channels of data from any type of analog-signal generating chromatography detector, supporting both stand-alone workstations and client/server applications.
The module features a standard serial RS232 interface, four built-in triggers, and four relays for programmable switching. It includes a built-in CPU and power supply to ensure reliable data transmission and retention even during PC power loss, retaining up to an hour of data per channel depending on the acquisition rate.
| Dynamic Range | >1,000,000 : 1 |
|---|---|
| Input Signal Range | -5 to +11 Volt |
| Maximum Input Voltage (Continuous) | +30V (power off); +45V (power on) |
| Channels | up to four analog channels |
| Dimensions | 4.75" (121 mm) H x 9" (228 mm) L x 2.75" (70 mm) W |
| Data Acquisition Rates | 0.1 Hz to 120 Hz |
| Noise | 2uV RMS |
It works with the EZChrom Flite Chromatography Data System and the Agilent OL Operating System for the Laboratory.
The unit has its own power supply and buffer, retaining an hour of data for each channel depending on the acquisition rate.
