Agilent 6820 Gas Chromatograph - Manual Flow Controller Installation Guide

About this manual

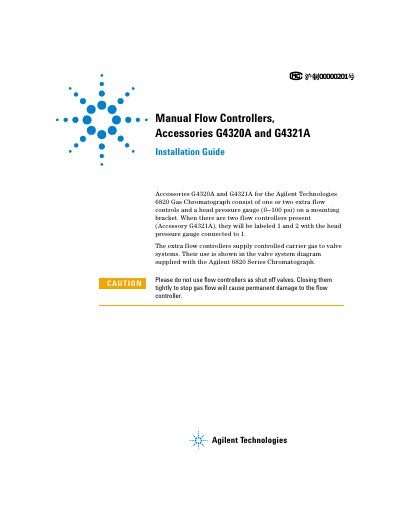

This guide covers the installation of Accessories G4320A and G4321A, which consist of one or two extra flow controls and a head pressure gauge (0—100 psi) on a mounting bracket. These accessories supply controlled carrier gas to valve systems for the Agilent 6820 Series Chromatograph.

What's inside

• Installation Guide
• Installing the Flow Controller Underneath
• Installing in Inlet Flow Module Position
• Safety Notices

Frequently asked questions

What is the pressure range of the head pressure gauge included with these flow controllers?

The head pressure gauge has a range from 0 to 100 psi.

What type of screws are required to fasten the flow controller into place?

You must use two Torx T-20 screws to secure the unit.

What part number should be used for gas traps at the source to prevent contamination?

The required gas trap has part number 5060-9084.
