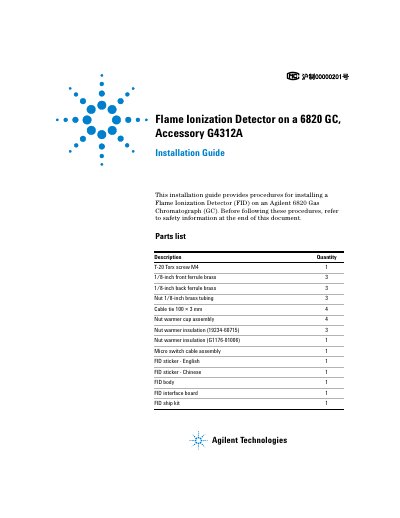

Agilent G4312A Flame Ionization Detector Installation Guide for 6820 GC

About this manual

This document serves as an installation guide for the Agilent G4312A Flame Ionization Detector (FID) accessory designed for use with the Agilent 6820 Gas Chromatograph. It provides a comprehensive list of required parts, tools, and configuration considerations before beginning the physical installation process.

What's inside

• Parts List
• Tools
• Configuration Considerations
• Preparing the GC
• Positioning and Securing the Detector
• Connecting the Detector
• Installing the Flow Control Module
• Restoring the GC to Operating Condition

Frequently asked questions

What tools are required for installing the FID?

Required tools include electrostatic protection (grounded wrist strap), a T-20 Torx screwdriver, diagonal cutters, and a 7/16-inch wrench.

Where should the FID be placed in a two-detector configuration?

In a standard factory configuration, an FID is always placed in the back location if a thermal conductivity detector (TCD) is present.

What safety precautions are needed when removing panels?

Users must disconnect the power cord to avoid shock hazards and use a grounded static control wrist strap to prevent damage to electronic components.
