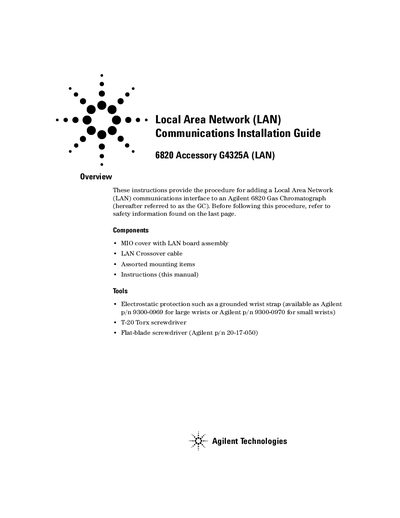

Agilent 6820 GC - G4325A LAN Installation Guide

About this manual

This guide details how to install a Local Area Network (LAN) interface on an Agilent 6820 Gas Chromatograph using the G4325A accessory. It covers preparing the instrument, installing the MIO cover and LAN board assembly, connecting cables, and configuring LAN parameters. Safety precautions are emphasized, including disconnecting power before opening panels and using static control wrist straps. The guide also addresses different back panel configurations for older and newer GC models and includes steps for setting IP address, gateway, and subnet mask.

What's inside

• Overview
• Components
• Tools
• General Steps
• Determine Your GC LAN Environment
• Prepare the GC
• Install the MIO Cover and LAN Board Assembly
• Which LAN Cable Connection Procedure Do I Use?
• Configure your GC LAN parameters

Frequently asked questions

What tools are needed to install the LAN board?

A T-20 Torx screwdriver, a flat-blade screwdriver (Agilent p/n 20-17-050), and an electrostatic protection wrist strap are required.

What components are needed to install the LAN interface?

MIO cover with LAN board assembly, LAN crossover cable, and assorted mounting items.

What tool is required to remove the electronics side and top cover?

A T-20 Torx screwdriver.

What should be done before removing side panels of the GC?

Disconnect the power cord to avoid shock hazard.
