Key facts
- Brand
- Texas Instruments
- Model
- UC3526
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-08
Start here

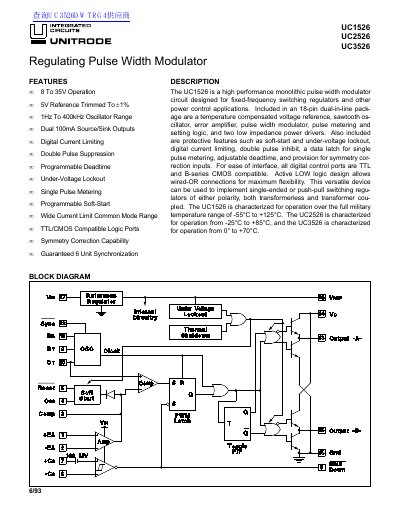

Texas Instruments UC1526/UC2526/UC3526 Regulating Pulse Width Modulator Datasheet
The document describes the UC1526, UC2526, and UC3526 as high-performance monolithic pulse width modulator circuits intended for fixed-frequency switching regulators and other power control applications. These devices feature an 8 to 35V operation range and include a temperature-compensated voltage reference, sawtooth oscillator, error amplifier, and pulse width modulator.
Read onlineTexas Instruments UC3526 specifications
| Operating Voltage Range | 8 to 35V |
|---|---|
| Oscillator Frequency Range | 1Hz to 400kHz |
| Operating Junction Temperature | +150°C |
Source: Texas Instruments UC1526/UC2526/UC3526 Regulating Pulse Width Modulator Datasheet
All Texas Instruments UC3526 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range for the UC2526?
The UC2526 is characterized for operation from -25°C to +85°C.
From: Texas Instruments UC1526/UC2526/UC3526 Regulating Pulse Width Modulator Datasheet
Can the logic ports drive TTL and CMOS directly?
Yes, all digital control ports are TTL and B-series CMOS compatible.
From: Texas Instruments UC1526/UC2526/UC3526 Regulating Pulse Width Modulator Datasheet
What is the operating temperature range for the UC2526?
The UC2526 is characterized for operation from -25°C to +85°C.
From: Texas Instruments UC1526/UC2526/UC3526 Regulating Pulse Width Modulator Datasheet
What are the digital logic ports compatible with?
All digital control ports are TTL and B-series CMOS compatible.
From: Texas Instruments UC1526/UC2526/UC3526 Regulating Pulse Width Modulator Datasheet
