Start here

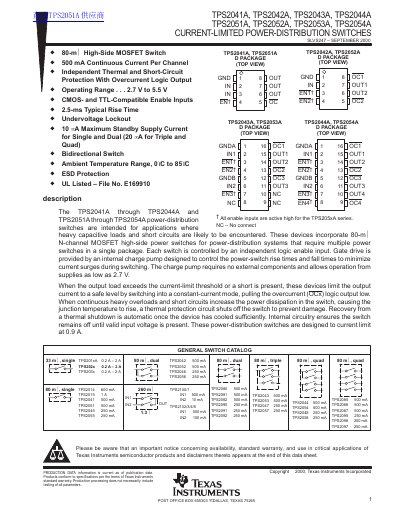

TEXAS INSTRUMENTS TPS2041A TPS2042A TPS2043A TPS2044A TPS2051A TPS2052A TPS2053A TPS2054A CURRENT-LIMITED POWER-DISTRIBUTION SWITCHES handbook
The TPS204xA and TPS205xA series are intended for applications where heavy capacitive loads and short circuits are likely to be encountered. These devices incorporate 80-mΩ N-channel MOSFET high-side power switches for power-distribution systems that require multiple power switches in a single package.
Each switch is controlled by an independent logic enable input, with gate drive provided by an internal charge pump designed to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7 V.
Texas Instruments TPS2054A specifications
| On-Resistance (RDS(ON)) | 80 mΩ |
|---|---|
| Maximum Continuous Current Per Channel | 500 mA |
| Operating Voltage Range | 2.7 V to 5.5 V |
| Maximum Standby Supply Current (Quad) | 10 A |
All Texas Instruments TPS2054A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- TEXAS INSTRUMENTS TPS2041A TPS2042A TPS2043A TPS2044A TPS2051A TPS2052A TPS2053A TPS2054A CURRENT-LIMITED POWER-DISTRIBUTION SWITCHES handbook 32 p
- TEXAS INSTRUMENTS TPS2041A TPS2042A TPS2043A TPS2044A TPS2051A TPS2052A TPS2053A TPS2054A CURRENT-LIMITED POWER-DISTRIBUTION SWITCHES handbook1 32 p
- TEXAS INSTRUMENTS TPS2041A TPS2042A TPS2043A TPS2044A TPS2051A TPS2052A TPS2053A TPS2054A CURRENT-LIMITED POWER-DISTRIBUTION SWITCHES handbook(1) 34 p
- TEXAS INSTRUMENTS TPS2041A TPS2042A TPS2043A TPS2044A TPS2051A TPS2052A TPS2053A TPS2054A CURRENT-LIMITED POWER-DISTRIBUTION SWITCHES datasheet 34 p
- TEXAS INSTRUMENTS TPS2041A TPS2042A TPS2043A TPS2044A TPS2051A TPS2052A TPS2053A TPS2054A CURRENT-LIMITED POWER-DISTRIBUTION SWITCHEShandbook 32 p
Questions answered in these manuals
What is the maximum continuous current per channel for these switches?
The devices support a maximum of 500 mA continuous current per channel.
What operating voltage range do these power-distribution switches require?
These switches operate from supplies as low as 2.7 V up to 5.5 V.
Do these switches require external components for the charge pump?
No, the internal charge pump requires no external components.
What is the maximum continuous current per channel for these switches?
The devices support 500 mA of continuous current per channel.
What logic level enables the TPS2041A power switch?
A logic low on the EN pin turns on the power switch for TPS2041A.
What is the typical rise time of the driver circuitry?
The driver’s typical rise time is 2.5 ms.
