TEXAS INSTRUMENTS TPS2041A TPS2042A TPS2043A TPS2044A TPS2051A TPS2052A TPS2053A TPS2054A CURRENT-LIMITED POWER-DISTRIBUTION SWITCHEShandbook

The TPS2041A through TPS2044A and TPS2051A through TPS2054A power-distribution switches are intended for applications where heavy capacitive loads and short circuits are likely to be encountered. These devices incorporate 80-mΩ N-channel MOSFET high-side power switches for power-distribution systems that require multiple power switches in a single package. Each switch is controlled by an independent logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7 V. When the output load exceeds the current-limit threshold or a short is present, these devices limit the output current to a safe level.

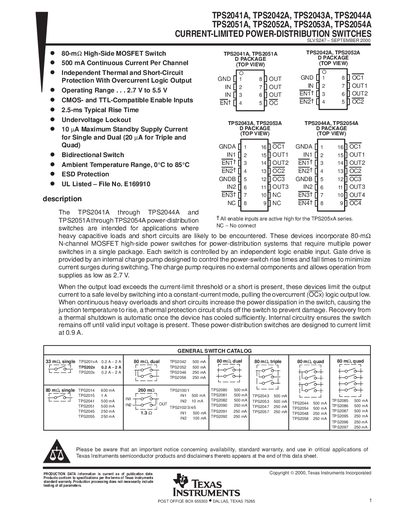

TEXAS INSTRUMENTS TPS2041A TPS2042A TPS2043A TPS2044A TPS2051A TPS2052A TPS2053A TPS2054A CURRENT-LIMITED POWER-DISTRIBUTION SWITCHEShandbook - cover page
Brand
Texas Instruments
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
32
File format
PDF
File size
477 KB
Published
03 May, 2012
Updated
29 September, 2023
MD5 checksum
6A97CFCCE8F6D0BFB6754518B656B340

About this manual

The TPS204x and TPS205x families are current‑limited power‑distribution switches that integrate an 80‑mΩ N‑channel MOSFET high‑side switch, an internal charge pump, and independent enable inputs. Each device can handle up to 500 mA continuous per channel and includes over‑current, thermal, and undervoltage lockout protection.

The devices operate from 2.7 V to 5.5 V, feature typical rise/fall times of 2‑ms to 4‑ms, and provide low standby current (<10 µA single/dual, 20 µA triple/quad). Thermal shutdown occurs near 140 °C, and the OCx output signals fault conditions.

What's inside

  • Functional Block Diagrams
  • Terminal Functions
  • Detailed Description
  • Power Switch
  • Charge Pump
  • Driver
  • Enable Input (ENx)
  • Overcurrent Protection (OCx)
  • Thermal Sense
  • Undervoltage Lockout

Specifications

Maximum continuous current per channel500 mA
Operating voltage range2.7 V to 5.5 V
On‑state resistance (RDS(on))135 mΩ
Typical rise/fall time2 ms to 4 ms
Thermal trip temperature≈140 °C
Undervoltage lockout threshold≈2 V

Frequently asked questions

What does the ENx enable input do?

ENx controls the power switch; a logic low (or high, depending on the series) turns the switch on, while the opposite logic level turns it off.

What type of MOSFET is used in the power switch?

The power switch uses an N‑channel MOSFET.

What is the minimum input voltage for the charge pump to operate?

The internal charge pump works from input voltages as low as 2.7 V.
