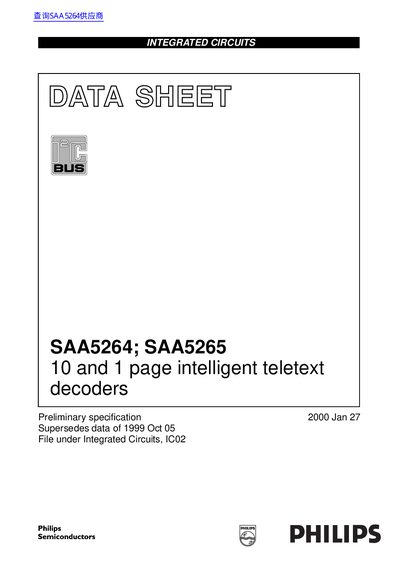

Philips SAA5264/SAA5265 Intelligent Teletext Decoders Preliminary Specification
This document is a preliminary specification for the Philips SAA5264 and SAA5265, which are single-chip intelligent teletext decoders designed for 625-line and 525-line displays. The SAA5264 supports a 10-page decoder with features like automatic page selection, Table Of Pages (TOP) decoding, and Violence Chip (VChip) support. The SAA5265 is a simplified one-page version without list mode features.
Read onlinePhilips SAA5264 specifications
| Supply Voltage | 3.3 V |
|---|---|
| Crystal Frequency | 12 MHz |
| Operating Temperature | -20 to +70 °C |
| Storage Temperature | -55 to +125 °C |
| Interface | I2C-bus |
| Character Sets | Pan-European, Cyrillic, Greek/Turkish, French/Arabic |
Source: Philips SAA5264/SAA5265 Intelligent Teletext Decoders Preliminary Specification
All Philips SAA5264 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage is required?
The device requires a 3.3 V supply voltage.
From: Philips SAA5264/SAA5265 Intelligent Teletext Decoders Preliminary Specification
Which character sets are supported?
The chips support Pan-European, Cyrillic, Greek/Turkish, and French/Arabic character sets.
From: Philips SAA5264/SAA5265 Intelligent Teletext Decoders Preliminary Specification
What character sets are supported by these chips?
Pan‑European, Cyrillic, Greek/Turkish, and French/Arabic character sets are included.
From: Philips SAA5264 and SAA5265 Teletext Decoder Datasheet
What is the package code for the SAA5264?
The SAA5264 is supplied in an SDIP52 plastic shrink dual‑in‑line package with 52 leads.
From: Philips SAA5264 and SAA5265 Teletext Decoder Datasheet
