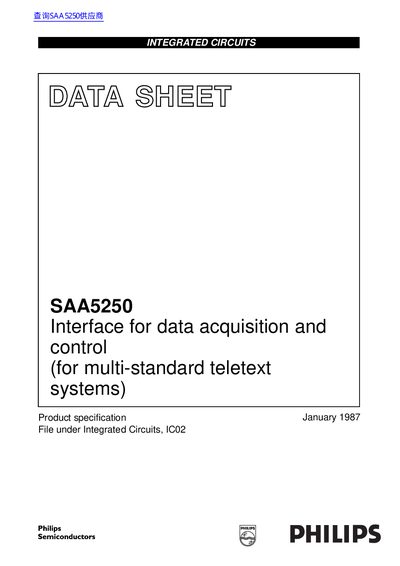

Philips SAA5250 Interface for Data Acquisition and Control Datasheet
The SAA5250 is a CMOS Interface for Data Acquisition and Control (CIDAC) designed for use in conjunction with the Video Input Processor (SAA5230) in a multi-standard teletext decoder. The device retrieves data from a user selected channel and provides control signals and consecutive addressing space necessary to drive a 2 K bytes buffer memory.
Read onlinePhilips SAA5250 specifications
| Maximum conversion rate | 7.5 MHz |
|---|---|
| Addressing space | 2 K bytes |
| Package type SAA5250P | 40-lead DIL |
| Package type SAA5250T | 40-lead mini-pack |
Source: Philips SAA5250 Interface for Data Acquisition and Control Datasheet
All Philips SAA5250 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What transmission standards does this interface support?
The device operates in accordance with the French Didon Antiope specification, North American Broadcast Teletext specification, and U.K. teletext.
From: Philips SAA5250 Interface for Data Acquisition and Control Datasheet
What is the maximum conversion rate of this interface?
The device has a 7,5 MHz maximum conversion rate.
From: Philips SAA5250 Interface for Data Acquisition and Control Datasheet
What is the maximum conversion rate of the SAA5250?
The SAA5250 can convert up to 7.5 MHz.
How much memory does the SAA5250 address?
It provides an addressing space of 2 KB of static memory.
