Start here

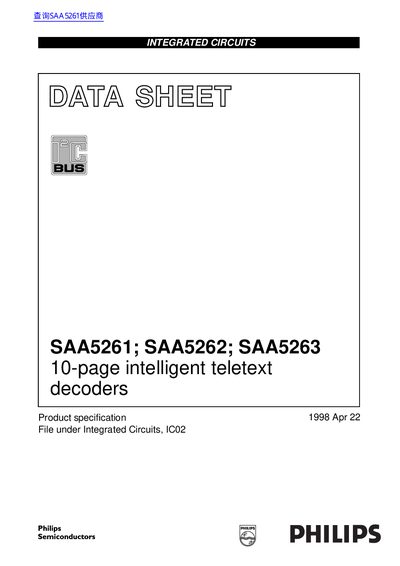

philips SAA5261; SAA5262; SAA5263 10-page intelligent teletext decoders handbook
The document is a product specification datasheet for the Philips SAA526xPS family of single-chip 625-line World System Teletext (WST) decoders. These integrated circuits are designed to reduce printed-circuit board area and cost while providing automatic detection of transmitted pages, Fastext links, and service information.
Read onlinePhilips SAA5262 specifications
| Digital supply voltage | 4.5 to 5.5 V |
|---|---|
| Crystal frequency | 12 MHz |
| Operating ambient temperature | -20 to +70 °C |
| Package type | SDIP52 (plastic shrink dual in-line package) |
Source: philips SAA5261; SAA5262; SAA5263 10-page intelligent teletext decoders handbook
All Philips SAA5262 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What power supply voltage is required for the SAA526x decoders?
The device operates from a single +5 V power supply.
From: philips SAA5261; SAA5262; SAA5263 10-page intelligent teletext decoders handbook
What crystal oscillator frequency does this decoder use?
It uses a single 12 MHz crystal oscillator for reduced cost.
From: philips SAA5261; SAA5262; SAA5263 10-page intelligent teletext decoders handbook
What is the required supply voltage range for the SAA526x series?
The digital supply voltage must be between 4.5 V and 5.5 V.
From: philips SAA5261 SAA5262 SAA5263 10-page intelligent teletext decoders handbook
What temperature range can the SAA526x chips operate in?
They are rated for ambient temperatures from –20 °C up to +70 °C.
From: philips SAA5261 SAA5262 SAA5263 10-page intelligent teletext decoders handbook
