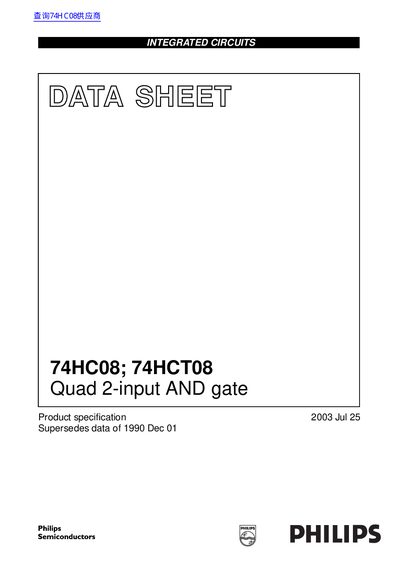

Philips 74HC08; 74HCT08 Quad 2-input AND gate Data Sheet
Datasheet 20 pages · 104 KB · EN
This document is a product specification datasheet for the Philips 74HC08 and 74HCT08, which are high-speed Si-gate CMOS devices. These integrated circuits provide the 2-input AND function and are pin compatible with low power Schottky TTL.
Read onlineAll Philips 74HC08 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Are these devices pin compatible with TTL?
Yes, they are pin compatible with low power Schottky TTL.
From: Philips 74HC08; 74HCT08 Quad 2-input AND gate Data Sheet
What is the standard compliance for these devices?
They comply with JEDEC standard no. 8-1A and no. 7A.
From: Philips 74HC08; 74HCT08 Quad 2-input AND gate Data Sheet
What is the supply voltage range for the 74HC08?
The supply voltage can be between 2.0 V and 6.0 V.
From: Philips 74HC08 / 74HCT08 Quad 2-input AND Gate Datasheet
