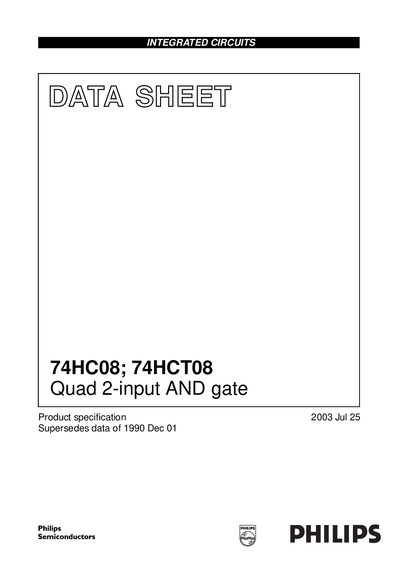

This document is a product specification for the 74HC08 and 74HCT08 quad 2-input AND gate. The products comply with JEDEC standards and have ESD protection and wide operating temperature ranges. They are high-speed Si-gate CMOS devices that are pin compatible with low power Schottky TTL. The 74HC08 and 74HCT08 provide the 2-input AND gate function.
The 74HC08 and 74HCT08 are high‑speed Si‑gate CMOS quad 2‑input AND gates that comply with JEDEC standard 8‑1A and include ESD protection. They are pin‑compatible with low‑power Schottky TTL devices and operate over a wide temperature range.
The datasheet lists multiple package options (DIP14, SSOP14, TSSOP14, DHVQFN14), typical propagation delay of 6 ns, input capacitance of 3.5 pF, and supply voltage ranges from 2.0 V to 6.0 V. Power dissipation per gate is up to 10 mW, and the devices are rated for operation from –40 °C to +125 °C.
| Supply voltage (Vcc) range | 2.0 V – 6.0 V |
|---|
The supply voltage can be between 2.0 V and 6.0 V.
