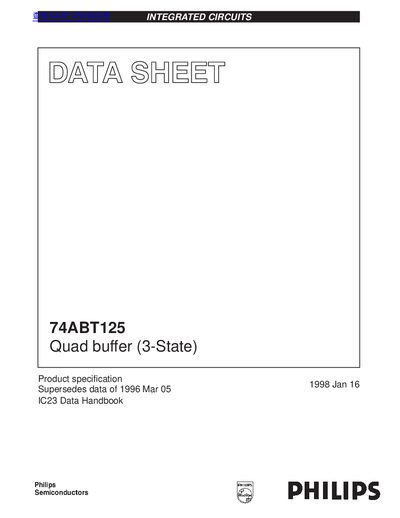

PHILIPS 74ABT125 Quad buffer (3-State) handbook
Datasheet 10 pages · 96 KB · EN
The Philips 74ABT125 is a high-performance BiCMOS device designed as a quad buffer ideal for driving bus lines. It features four Output Enables (OE0–OE3), each controlling one of the 3-State outputs, allowing for live insertion and extraction of components without disrupting the system.
Read onlinePhilips 74ABT125 specifications
| Output capability (High) | +64mA |
|---|---|
| Output capability (Low) | -32mA |
| Latch-up protection | >500mA |
| Operating temperature range | -40°C to +85 °C |
| Supply voltage (Min) | 4.5 V |
All Philips 74ABT125 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the output capability of the 74ABT125?
The device has an output capability of +64mA for high states and -32mA for low states.
Does the 74ABT125 allow live insertion?
Yes, live insertion and extraction are permitted with this device.
What is the output drive capability of the 74ABT125?
The device can source up to +64 mA and sink up to –32 mA per output.
