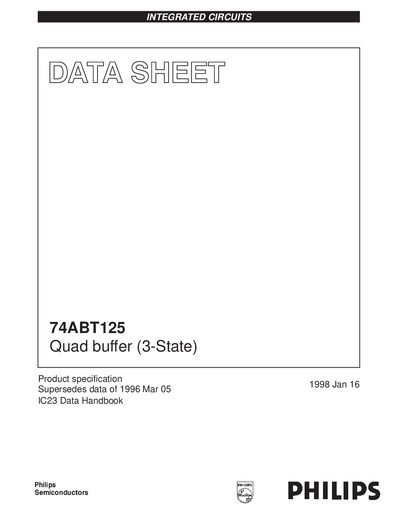

The 74ABT125 is a quad buffer produced by PHILIPS with a 3-state output interface, high output drive capability and low power consumption. This product is ideal for driving bus lines and can disable inputs in 3-state mode.
The Philips 74ABT125 is a high‑performance BiCMOS quad buffer with 3‑State outputs, designed for driving bus lines. It offers four independent output‑enable pins and includes ESD and latch‑up protection.
The document provides detailed electrical characteristics, absolute maximum ratings, recommended operating conditions, package options, pin descriptions, and waveform data for designers and engineers.
| Output capability | +64 mA / –32 mA |
|---|---|
| Latch‑up protection | exceeds 500 mA per JEDEC Std 17 |
| ESD protection | exceeds 2000 V per MIL‑STD‑883 |
| Supply voltage range (absolute max) | ‑0.5 V to +7.0 V |
The device can source up to +64 mA and sink up to –32 mA per output.
