Start here

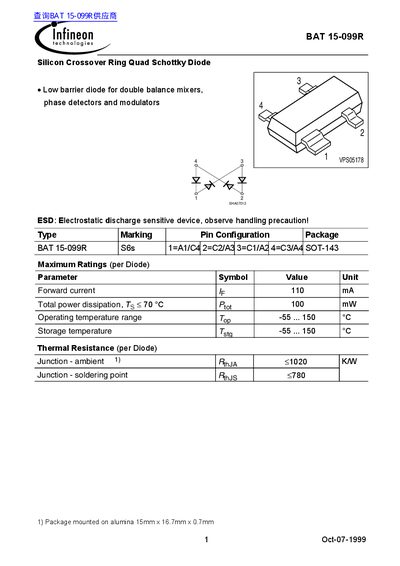

Infineon BAT 15-099R Silicon Crossover Ring Quad Schottky Diode Datasheet
This document is a datasheet for the Infineon BAT 15-099R, a Silicon Crossover Ring Quad Schottky Diode. It is designed as a low barrier diode suitable for applications such as double balance mixers, phase detectors, and modulators. The device is housed in an SOT-143 package and is electrostatic discharge (ESD) sensitive.
The datasheet provides maximum ratings per diode, including a forward current of 110 mA and an operating temperature range of -55 to 150 °C. It also lists electrical characteristics at 25 °C, specifying parameters such as forward voltage, diode capacitance, and forward resistance.
Infineon BAT15 specifications
| Forward current | 110 mA |
|---|---|
| Total power dissipation | 100 mW |
| Operating temperature range | -55 ... 150 °C |
| Storage temperature | -55 ... 150 °C |
| Package | SOT-143 |
| Forward voltage (IF=1mA) | 0.23 V (min) to 0.32 V (typ) |
Source: Infineon BAT 15-099R Silicon Crossover Ring Quad Schottky Diode Datasheet
All Infineon BAT15 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Infineon BAT 15-099R Silicon Crossover Ring Quad Schottky Diode Datasheet 2 p
- Infineon BAT 15-099 Silicon Dual Schottky Diode Datasheet 4 p
- Infineon BAT 15-05W Silicon Schottky Diode Datasheet 3 p
- Infineon BAT 15-04W Silicon Schottky Diode Preliminary Data 4 p
- Infineon BAT 15-03W Silicon Schottky Diode Datasheet 3 p
- Infineon BAT15 Silicon Schottky Diodes Datasheet 10 p
Questions answered in these manuals
What is the BAT 15-099R used for?
It is a low barrier diode used for double balance mixers, phase detectors, and modulators.
From: Infineon BAT 15-099R Silicon Crossover Ring Quad Schottky Diode Datasheet
What is the maximum forward current?
The maximum forward current per diode is 110 mA.
From: Infineon BAT 15-099R Silicon Crossover Ring Quad Schottky Diode Datasheet
What is the maximum operating temperature range?
The operating temperature range is from -55 to 150 °C.
From: Infineon BAT 15-099 Silicon Dual Schottky Diode Datasheet
What is the maximum forward current?
The maximum forward current is 110 mA.
From: Infineon BAT 15-099 Silicon Dual Schottky Diode Datasheet
What is the maximum reverse voltage rating for this diode?
The device has a maximum reverse voltage of 4 V.
What is the operating temperature range for this component?
It operates between -55 °C and 150 °C.
