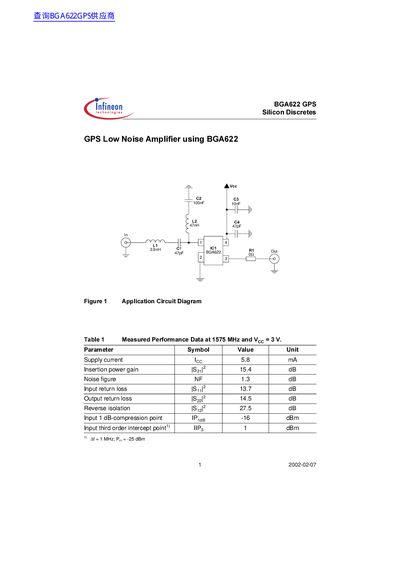

Infineon Technologies BGA622 GPS Low Noise Amplifier Datasheet
This document is a technical datasheet for the Infineon Technologies BGA622, a Silicon Discretes product designed as a GPS Low Noise Amplifier. It provides measured performance data at 1575 MHz with a supply voltage of 3 V.
The text includes detailed specifications such as supply current, insertion power gain, noise figure, and various return loss values. Additionally, it features a bill of materials for an application circuit and graphical representations of frequency response characteristics including gain, stability factor, and compression points.
Infineon BGA622 specifications
| Supply current | 5.8 mA |
|---|---|
| Insertion power gain | 15.4 dB |
| Noise figure | 1.3 dB |
| Input return loss | 13.7 dB |
| Output return loss | 14.5 dB |
| Reverse isolation | 275 dB |
| Input 1 dB-compression point | -16 dBm |
| Input third order intercept point | 1 dBm |
