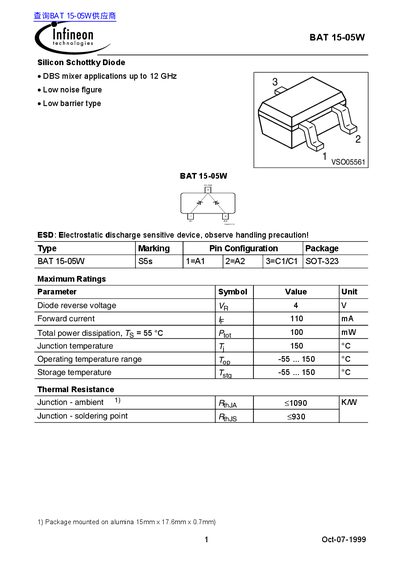

Infineon BAT 15-05W Silicon Schottky Diode Datasheet

BAT 15-05W is a Schottky diode that can be used in DBS mixer applications up to 12 GHz. It features a low noise figure and low barrier type.

Brand: Infineon
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 75 KB
Published: 09 July, 2012
Updated: 01 October, 2023
Model: BAT15
MD5 checksum: B1502EADD8D6C2BF004EBF0356F89BEB
PDF: Infineon BAT 15-05W Silicon Schottky Diode Datasheet PDF

About this manual

The document is a datasheet for the Infineon BAT 15-05W, a Silicon Schottky Diode designed for DBS mixer applications up to 12 GHz. It features a low noise figure and low barrier type construction, packaged in SOT-323.

What's inside

Maximum Ratings
Thermal Resistance
Electrical Characteristics
DC characteristics
AC characteristics
Forward current characteristics
Reverse current characteristics
Diode capacitance

Specifications

Diode reverse voltage	4 V
Forward current	110 mA
Total power dissipation	100 mW
Junction temperature	150 °C
Operating temperature range	-55 ... 150 °C
Breakdown voltage	4 V
Forward voltage (Ip=1mA)	0.23 V
Diode capacitance	0.35 pF

Frequently asked questions

What is the maximum reverse voltage rating for this diode?

The device has a maximum reverse voltage of 4 V.

What is the operating temperature range for this component?

It operates between -55 °C and 150 °C.

What is the maximum forward current this diode can handle?

The maximum forward current is 110 mA.
