BAT15 is a Schottky diode, low barrier type for DBS mixer applications up to 12 GHz, phase detectors and modulators

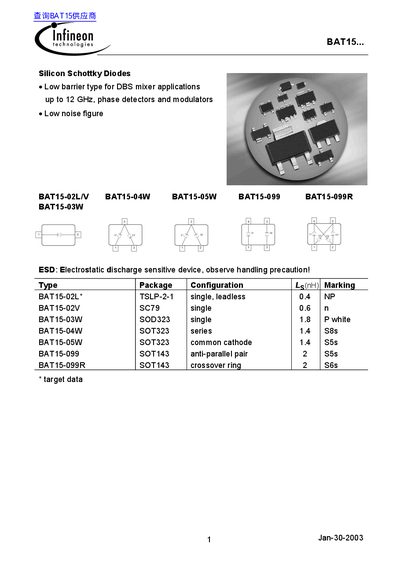

This datasheet covers the BAT15 series of Silicon Schottky Diodes, which are low barrier type devices intended for applications such as DBS mixers, phase detectors, and modulators operating up to 12 GHz. The document provides detailed electrical characteristics, maximum ratings, and thermal resistance information for various package configurations including SC79, SOD323, SOT323, and SOT143.
| Maximum Junction Temperature | 150 °C |
|---|---|
| Operating Temperature Range | -55 ... 150 |
| Maximum Forward Current | 110 mA |
| Maximum Frequency | 12 GHz |
They are designed for DBS mixers, phase detectors, and modulators.
The maximum junction temperature is 150 °C.
The maximum forward current is 110 mA.
