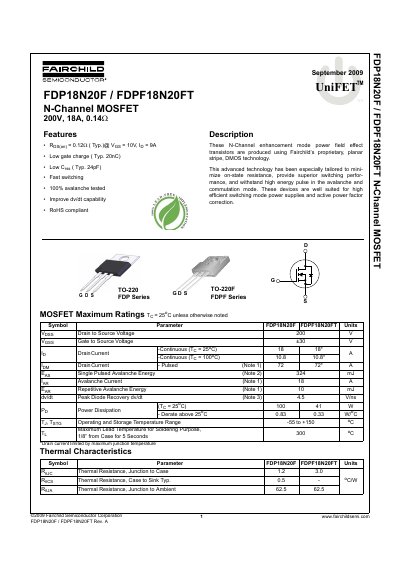

Fairchild FDP18N20F/FDPF18N20FT N-Channel MOSFET Datasheet
The document describes the FDP18N20F and FDPF18N20FT as N-Channel enhancement mode power field effect transistors produced using Fairchild's proprietary planar stripe DMOS technology. These devices are designed to minimize on-state resistance, provide superior switching performance, and withstand high energy pulses in avalanche and commutation modes.
Read onlineFairchild FDP18N20F specifications
| Power Dissipation (Tc=25°C) | 100 W |
|---|---|
| Operating and Storage Temperature Range | -55 to +150 °C |
| Thermal Resistance, Junction to Case (FDP18N20F) | 1.2 °C/W |
| Thermal Resistance, Junction to Ambient | 62.5 °C/W |
Source: Fairchild FDP18N20F/FDPF18N20FT N-Channel MOSFET Datasheet
All Fairchild FDP18N20F documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain current for this MOSFET?
The continuous drain current at Tj=25°C is 18A, with a pulsed rating of 72A.
From: Fairchild FDP18N20F/FDPF18N20FT N-Channel MOSFET Datasheet
What are the available packages for these devices?
The FDP18N20F is in a TO-220 package, and the FDPF18N20FT is in a TO-220F package.
From: Fairchild FDP18N20F/FDPF18N20FT N-Channel MOSFET Datasheet
What is the maximum continuous drain current for the FDP18N20F?
The maximum continuous drain current is 18 A at 25 °C.
From: Fairchild FDP18N20F / FDPF18N20F N-Channel MOSFET Datasheet
What are the voltage ratings for the device?
It is rated for 200 V drain‑source voltage and +30 V gate‑source voltage.
From: Fairchild FDP18N20F / FDPF18N20F N-Channel MOSFET Datasheet
