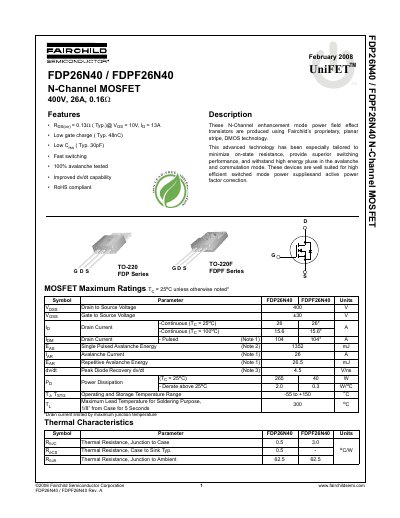

Fairchild FDP26N40/FDPF26N40 N-Channel MOSFET Datasheet
The document details the FDP26N40 and FDPF26N40 N-Channel enhancement mode power field effect transistors produced using Fairchild's proprietary planar stripe DMOS technology. These devices are designed for high-efficiency switched mode power supplies and active power factor correction, featuring low on-state resistance and fast switching capabilities.
Read onlineFairchild FDP26N40 specifications
| Drain to Source Voltage | 400 V |
|---|---|
| Drain Current-Continuous (TC = 25°C) | 26 A |
| RDS(on) Static Drain to Source On Resistance | 0.13 ℧ (Typ.) |
| Total Gate Charge | 48 nC (Typ.) |
| Reverse Transfer Capacitance | 30 pF (Typ.) |
| Operating and Storage Temperature Range | -55 to +150°C |
| Thermal Resistance, Junction to Case | 0.5 °C/W |
Source: Fairchild FDP26N40/FDPF26N40 N-Channel MOSFET Datasheet
All Fairchild FDP26N40 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous drain current at 25°C?
The maximum continuous drain current is 26 A.
From: Fairchild FDP26N40/FDPF26N40 N-Channel MOSFET Datasheet
What is the typical on-state resistance?
The typical on-state resistance is 0.13 Ω at VGS = 10V and ID = 13A.
From: Fairchild FDP26N40/FDPF26N40 N-Channel MOSFET Datasheet
Is the FDP26N40 MOSFET RoHS compliant?
Yes, the datasheet states that the device is RoHS compliant.
From: Fairchild FDP26N40 / FDPF26N40 N-Channel MOSFET Datasheet
