EXTECH TM300 Type K/J Dual Input Thermometer Product Datasheet

The product is a dual-input thermometer that supports Type K and Type J temperature probes. The temperature range is -328 to 2501 degrees Fahrenheit (-200 to 1372 degrees Celsius). The resolution is 0.1 degrees Fahrenheit / 1 degree Celsius. The display screen can display T1, T2, T1-T2, minimum, maximum, and average values. It supports Fahrenheit, Celsius, and Kelvin temperature units. It supports data freezing, maximum/minimum/average value readings, and relative time stamps. It has an automatic power-off function and comes with two Type K probes, three AAA batteries, and a portable case.

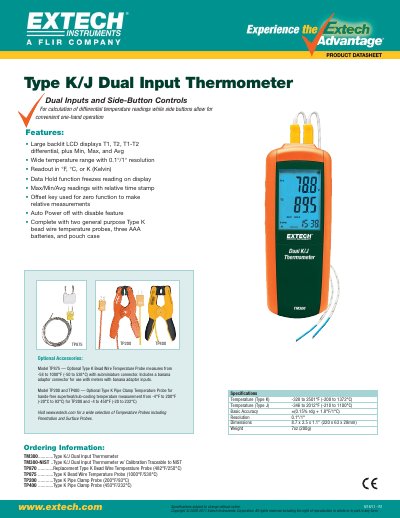

EXTECH TM300 Type K/J Dual Input Thermometer Product Datasheet - cover page
Brand
EXTECH
Category
Other Electronics
Document type
Product Leaflet
Language
English
Pages
1
File format
PDF
File size
199 KB
Published
01 August, 2012
Updated
30 September, 2023
Model
TM300
MD5 checksum
4CDC9635D5D409006243DE500785470D

About this manual

The EXTECH TM300 is a Type K/J Dual Input Thermometer designed for calculating differential temperature readings. It features side-button controls for convenient one-hand operation and a large backlit LCD display showing T1, T2, differential, Min, Max, and Avg readings. The device supports readouts in °F, °C, or K and includes functions such as Data Hold, Max/Min/Avg with time stamps, and an offset key for zeroing relative measurements.

What's inside

  • Features
  • Specifications
  • Optional Accessories
  • Ordering Information

Specifications

Temperature Range (Type J)-58 to 1000°F (-50 to 538°C)
Accuracy±(0.15% rdg + 1.8°F/1°C)
Resolution0.1°/1°
Dimensions8.7 x 2.5 x 1.1" (220 x 63 x 28mm)
Weight7oz (200g)

Frequently asked questions

What is the basic accuracy of the thermometer?

The basic accuracy is ±(0.15% rdg + 1.8°F/1°C).

Does the TM300 include batteries and a case?

Yes, it comes complete with two general purpose Type K bead wire temperature probes, three AAA batteries, and a pouch case.
