Start here

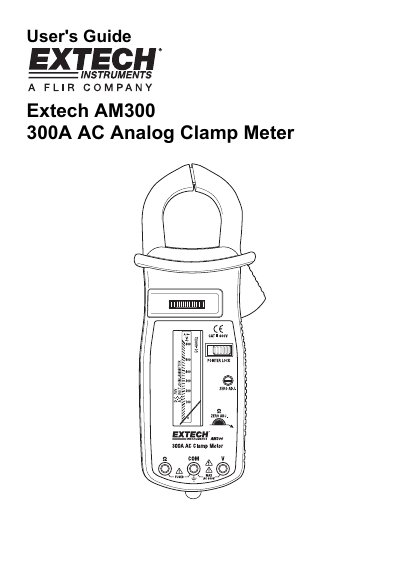

Extech AM300 300A AC Analog Clamp Meter User's Guide
The Extech AM300 is a fully tested and calibrated analog clamp meter designed to measure AC voltage, DC voltage, resistance, and AC current. The device features a function selector switch, a pointer lock for holding readings, and zero adjustment screws for both voltage and resistance measurements. It is intended for use in environments with overvoltage category II protection up to 600V.
Read onlineEXTECH AM300 specifications
| AC Current Ranges | 0, 6, 15, 60, 150, and 300A AC |
|---|---|
| AC Voltage Ranges | 300 and 600V AC |
| DC Voltage Ranges | 75V DC |
| Fuse | 0.5A / 250V glass fuse |
| Dimensions & Weight | 9.0 x 2.8 x 1.5" (230 x 72 x 37mm); 14.7oz. (416g) |
Source: Extech AM300 300A AC Analog Clamp Meter User's Guide
All EXTECH AM300 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum AC current measurement?
The meter can measure up to 300A AC.
How do I replace the battery?
Remove the two Phillips head screws at the rear of the meter, open the housing, replace the 1.5V 'AA' battery, and close the meter securely.
What is the maximum jaw opening of this meter?
The jaws open to a width of 1.5 inches.
Does this clamp meter include test leads and a battery?
Yes, it comes complete with test leads and a 1.5V battery.
