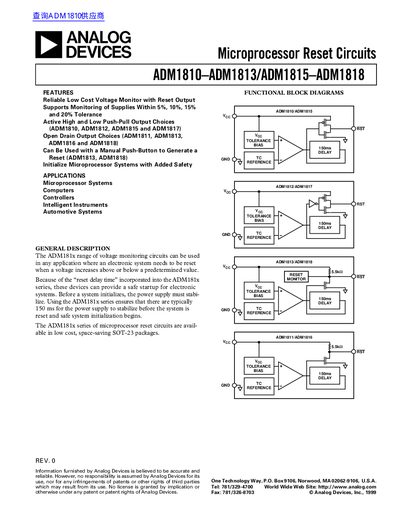

Analog Devices ADM1810-ADM1813/ADM1815-ADM1818 Microprocessor Reset Circuits Datasheet
The ADM181x range of voltage monitoring circuits from Analog Devices is designed for applications where an electronic system needs to be reset when a voltage increases above or below a predetermined value. These devices provide a safe startup for electronic systems by incorporating a 150 ms reset delay time, ensuring the power supply stabilizes before system initialization begins.
Read onlineAnalog Devices ADM1810 specifications
| Supply Voltage | 1.2 V to 5.5 V |
|---|---|
| Operating Temperature Range | -40 °C to +85 °C |
| Reset Delay Time | 150 ms (typical) |
| Package Type | SOT-23 (RT-3) |
| Output Configurations | Active High/Low Push-Pull and Open Drain |
| Voltage Tolerance Options | 5%, 10%, 15%, and 20% |
Source: Analog Devices ADM1810-ADM1813/ADM1815-ADM1818 Microprocessor Reset Circuits Datasheet
All Analog Devices ADM1810 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the reset delay time for the ADM181x series?
The ADM181x series provides a typical 150 ms reset delay time to ensure power supply stabilization.
From: Analog Devices ADM1810-ADM1813/ADM1815-ADM1818 Microprocessor Reset Circuits Datasheet
Can the ADM1813 and ADM1818 be used with a manual push-button?
Yes, the ADM1813 and ADM1818 can be used with a manual push-button to generate a reset.
From: Analog Devices ADM1810-ADM1813/ADM1815-ADM1818 Microprocessor Reset Circuits Datasheet
What is the typical reset active time?
The typical reset active time is 150 ms.
What packages are the devices available in?
They are available in 3‑lead SOT‑23 and SC70 packages.
