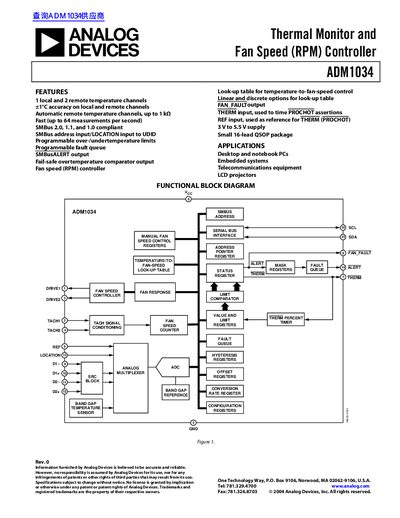

Analog Devices ADM1034 Thermal Monitor and Fan Speed Controller Datasheet
The ADM1034 is a thermal monitor and fan speed (RPM) controller designed for desktop and notebook PCs, embedded systems, telecommunications equipment, and LCD projectors. It functions as a dual-channel remote- and local-temperature sensor, monitoring two remote thermal diodes and its own ambient temperature with +1°C accuracy.
The device controls the speed of two cooling fans using either a programmable target speed or a look-up table configured for discrete speeds or linear ramping. Communication occurs over a 2-wire SMBus 2.0 interface, which supports address input via LOCATION and includes features like an ALERT output for error conditions and fail-safe overtemperature comparators.
Analog Devices ADM1034 specifications
| Supply Voltage Range | 3.0 V to 5.5 V |
|---|---|
| Local Sensor Accuracy | +1°C |
| Remote Channel Resistance | up to 1kΩ |
| Measurement Rate | 64 measurements per second |
| Package Type | 16-lead QSOP |
| Fan Speed Measurement Accuracy | +4% |
Source: Analog Devices ADM1034 Thermal Monitor and Fan Speed Controller Datasheet
All Analog Devices ADM1034 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the accuracy of the local and remote temperature channels?
The device provides +1°C accuracy on both local and remote channels.
From: Analog Devices ADM1034 Thermal Monitor and Fan Speed Controller Datasheet
Which SMBus versions does the ADM1034 support?
It is compliant with SMBus 2.0, 1.1, and 1.0.
From: Analog Devices ADM1034 Thermal Monitor and Fan Speed Controller Datasheet
What is the supply voltage range for the ADM1034?
The device operates from 3.0 V to 3.6 V supply voltage.
From: Analog Devices ADM1034 Thermal Monitor and Fan Controller Datasheet
How many temperature channels does the ADM1034 have?
It provides one local temperature channel and two remote temperature channels.
From: Analog Devices ADM1034 Thermal Monitor and Fan Controller Datasheet
What communication interface does the ADM1034 use?
The ADM1034 communicates over a 2‑wire SMBus 2.0 interface.
How many temperature channels are provided?
It provides one local temperature channel and two remote temperature channels.
