The ADL5605 is a broadband, two-stage, 1 W RF driver amplifier that operates over a frequency range of 700 MHz to 1000 MHz.
This datasheet provides the specifications, pin configuration, and performance characteristics of the Analog Devices ADL5605 1 W RF driver amplifier. It includes details on frequency range, gain, power supply requirements, noise figure, and thermal considerations.

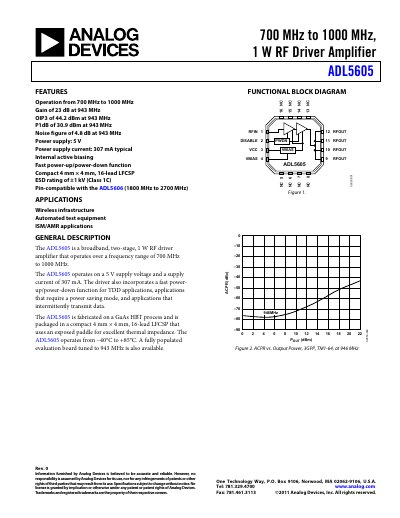

The document also contains typical scattering parameters, evaluation board information, mechanical dimensions, and ordering guide for the 4 mm × 4 mm 16‑lead LFCSP package.
| Frequency range | 700 MHz – 1000 MHz |
|---|---|
| Gain at 943 MHz | 23 dB |
| Power supply voltage | 5 V |
| Typical supply current | 307 mA |
| Noise figure at 943 MHz | 4.8 dB |
| OIP3 at 943 MHz | 44.2 dBm |
| P1dB at 943 MHz | 30.9 dBm |
| Package | 4 mm × 4 mm, 16‑lead LFCSP |
| Operating temperature range | -40 °C to +85 °C |
The ADL5605 operates from 700 MHz to 1000 MHz.
It requires a 5 V power supply.
The typical supply current is 307 mA.
It provides a gain of 23 dB at 943 MHz.
