ADL5530 is a high performance fixed gain RF amplifier with a fixed gain of 16.5dB, operating frequency range from DC to 1000MHz, input/output matched 50Ω, output third order intercept (OIP3) is 37dBm, noise figure is 3dB. Suitable for VCO buffers, general purpose Tx/Rx amplification and other applications.

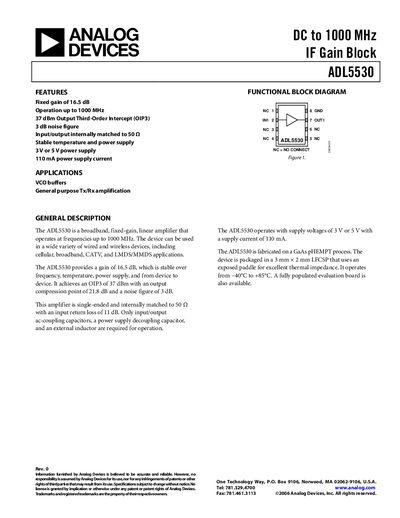

The ADL5530 is a broadband, fixed‑gain, linear amplifier that provides 16.5 dB gain stable over frequency, temperature and supply voltage. It operates from 10 MHz to 1000 MHz, delivers an OIP3 of 37 dBm, a 3 dB noise figure and is internally matched to 50 Ω.
Typical applications include VCO buffers and general‑purpose Tx/Rx amplification in cellular, broadband, CATV and LMDS/MMDS systems. The device is supplied in an 8‑lead LFCSP package, operates from a 3 V or 5 V supply, and an evaluation board is available for prototyping.
| Frequency Range | 10 MHz – 1000 MHz |
|---|---|
| Gain (typical) | 16.5 dB |
| Noise Figure (typical) | 3 dB |
| Output OIP3 | 37 dBm |
| Supply Voltage | 3 V or 5 V |
| Supply Current | 110 mA |
| Power Dissipation (VPOS=5 V) | 0.55 W |
| Operating Temperature Range | -40 °C to +85 °C |
The ADL5530 provides a typical gain of 16.5 dB.
The device can be powered from either a 3 V or a 5 V supply.
It is rated for operation from –40 °C up to +85 °C.
The ADL5530 has an OIP3 of 37 dBm.
