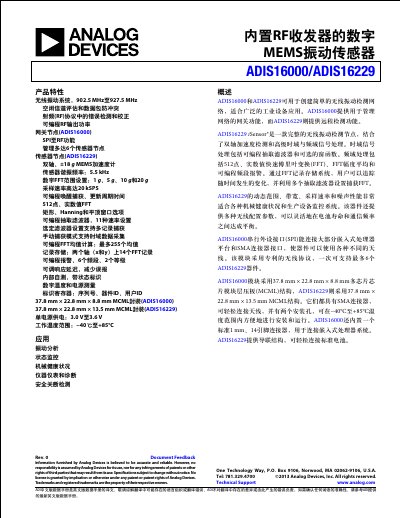

This datasheet describes the ADIS16000 gateway and ADIS16229 sensor nodes for wireless vibration detection networks, featuring MEMS accelerometers and RF…
The document details the Analog Devices ADIS16000/ADIS16229 family of devices designed to create simple wireless vibration detection networks suitable for industrial equipment applications. The system consists of an ADIS16000 gateway node that manages the network and up to six ADIS16229 remote sensor nodes.
The ADIS16229 iSensor® combines dual-axis acceleration sensing with advanced time-domain and frequency-domain signal processing. It features a digital MEMS accelerometer, an FFT processor, and a wireless transceiver operating in the 902.5 MHz to 927.5 MHz band. The datasheet provides technical specifications for the MEMS accelerometer, RF parameters, power consumption, timing characteristics, pin configurations, and application information. This manual is written in Chinese.
| Sampling Rate | Up to 20 kSPS |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
| Supply Voltage Range | 3.0 V to 3.6 V |
| RF Frequency Band | 902.5 MHz to 927.5 MHz |
| Max Sensor Nodes Supported | 6 nodes |
| Accelerometer Sensitivity (FFT) | 0.3052 mg/LSB |
The devices operate within a temperature range of -40°C to +85°C.
The ADIS16000 gateway node can manage up to six ADIS16229 sensor nodes.
