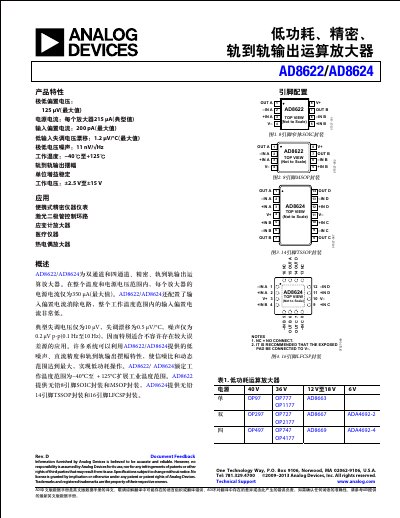

Analog Devices AD8622/AD8624 Low Power Operational Amplifier Datasheet
The AD8622 and AD8624 are precision, low power, rail-to-rail output operational amplifiers available in dual (AD8622) and quad (AD8624) channel configurations. They feature extremely low bias voltage (125 µV maximum) and low power consumption, with a typical supply current of 215 µA per amplifier. These devices are designed for applications requiring high DC accuracy and low noise, such as portable instrumentation, laser diode control loops, and medical instruments. This manual is written in Chinese.
Read onlineAnalog Devices AD8622 specifications
| Supply Voltage | ±2.5 V to ±15 V |
|---|---|
| Supply Current (Typical) | 215 µA per amplifier |
| Input Bias Current (Max) | 200 pA |
| Offset Voltage Drift (Max) | 1.2 µV/°C |
| Voltage Noise Density | 11 nV/√Hz |
| Operating Temperature Range | -40°C to +125°C |
Source: Analog Devices AD8622/AD8624 Low Power Operational Amplifier Datasheet
All Analog Devices AD8622 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the AD8622/AD8624?
The maximum supply voltage is ±15 V.
From: Analog Devices AD8622/AD8624 Low Power Operational Amplifier Datasheet
What is the typical supply current per amplifier?
The typical supply current is 215 µA per amplifier.
From: Analog Devices AD8622/AD8624 Low Power Operational Amplifier Datasheet
What temperature range can the AD8622/AD8624 operate in?
The devices are specified to operate from –40 °C up to +125 °C.
From: Analog Devices AD8622/AD8624 Low Power Precision Rail-to-Rail Output Op Amp Datasheet
