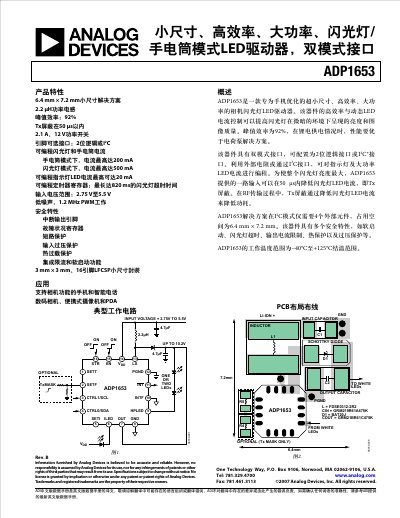

Analog Devices ADP1653 LED Driver Datasheet
Datasheet 24 pages · 992 KB · EN
The ADP1653 is an ultra-small size, highly efficient, and high-power LED driver optimized specifically for mobile phones. It features dual-mode interfaces that can be configured as either a 2-bit logic interface or an I2C interface. The device offers high efficiency with dynamic LED current control suitable for both flash and torch modes.
Read onlineAnalog Devices ADP1653 specifications
| Peak Efficiency | 92 % |
|---|---|
| Input Voltage Range | 2.75 V to 5.5 V |
| Torch Mode Current | Up to 200 mA |
| Flash Mode Current | Up to 500 mA |
| Switching Frequency | 1.1 MHz to 1.3 MHz |
| Thermal Shutdown Threshold | 155 °C |
All Analog Devices ADP1653 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum input voltage range for the ADP1653?
The device operates with an input voltage ranging from 2.75 V to 5.5 V.
What is the peak efficiency of the ADP1653 LED driver?
The device achieves a peak efficiency of 92%.
What is the peak efficiency of the ADP1653?
The ADP1653 achieves a peak efficiency of 92 %.
What input voltage range does the ADP1653 support?
It operates from 2.75 V to 5.5 V (typical 3.0 V‑5.5 V).
