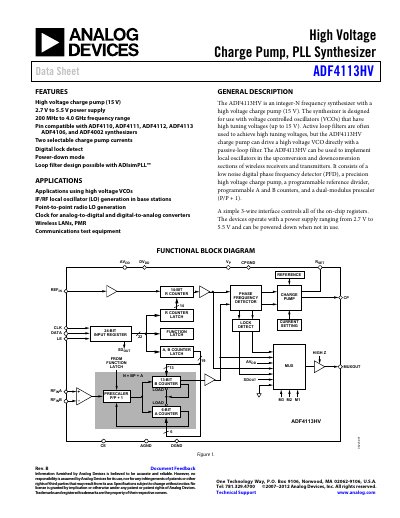

Analog Devices ADF4113HV High Voltage Charge Pump PLL Synthesizer Data Sheet
The ADF4113HV is an integer-N frequency synthesizer featuring a high voltage charge pump capable of 15 V. It is specifically designed to drive voltage controlled oscillators (VCOs) that require high tuning voltages, up to 15 V. The device supports a power supply range from 2.7 V to 5.5 V and operates with an RF frequency range of 200 MHz to 4.0 GHz.
Read onlineAnalog Devices ADF4113HV specifications
| Charge Pump Voltage | 15 V |
|---|---|
| Power Supply Range | 2.7 V to 5.5 V |
| Frequency Range | 200 MHz to 4.0 GHz |
| Operating Temperature (B Version) | -40°C to +85 °C |
| RF Input Frequency (3 V) | 0.2/3.7 GHz |
| Charge Pump Current Sink/Source (High Value) | 640 μA typ |
Source: Analog Devices ADF4113HV High Voltage Charge Pump PLL Synthesizer Data Sheet
All Analog Devices ADF4113HV documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum tuning voltage supported?
The synthesizer supports VCOs with high tuning voltages up to 15 V.
From: Analog Devices ADF4113HV High Voltage Charge Pump PLL Synthesizer Data Sheet
Is the device pin compatible with other models?
Yes, it is pin compatible with ADF4110, ADF4111, ADF4112, ADF4113, ADF4106, and ADF4002 synthesizers.
From: Analog Devices ADF4113HV High Voltage Charge Pump PLL Synthesizer Data Sheet
What is the operating temperature range?
The device operates from –40 °C to +85 °C.
