Start here

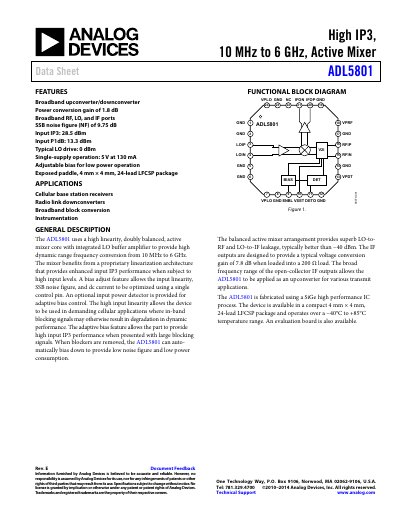

Analog Devices ADL5801 Active Mixer Data Sheet
The ADL5801 is a high linearity, doubly balanced active mixer core with an integrated LO buffer amplifier designed for frequency conversion from 10 MHz to 6 GHz. It features a proprietary linearization architecture that enhances input IP3 performance under high input levels and includes an adjustable bias feature to optimize linearity, noise figure, and power consumption.
The device is fabricated using a SiGe high performance IC process and is available in a compact 4 mm × 4 mm, 24-lead LFCSP package. It operates over a temperature range of −40°C to +85°C and is suitable for applications such as cellular base station receivers, radio link downconverters, and broadband block conversion.
Analog Devices ADL5801 specifications
| RF Frequency Range | 10 to 6000 MHz |
|---|---|
| Supply Voltage | 4.75 to 5.25 V |
| Quiescent Current | 130 to 200 mA |
| Input 1 dB Compression Point (fRF = 900 MHz) | 13.3 dBm |
| SSB Noise Figure (fCENT = 900 MHz) | 9.75 dB |
| Package Type | 4 mm × 4 mm, 24-lead LFCSP |
All Analog Devices ADL5801 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating frequency range of the ADL5801?
The device operates over a frequency range of 10 MHz to 6 GHz.
What is the typical supply voltage for the ADL5801?
The typical supply voltage is 5 V.
Does the ADL5801 have an integrated LO buffer?
Yes, it includes an integrated LO buffer amplifier.
From: High IP3, 10 MHz to 6 GHz, Active Mixer Data Sheet ADL5801 Rev. F
What is the typical power conversion gain?
The typical power conversion gain is 1.8 dB.
From: High IP3, 10 MHz to 6 GHz, Active Mixer Data Sheet ADL5801 Rev. F
What supply voltage does the ADL5801 require?
The device operates from a single 5 V supply.
What is the typical power conversion gain of the ADL5801 at 900 MHz?
The typical power conversion gain is 1.8 dB at 900 MHz.
