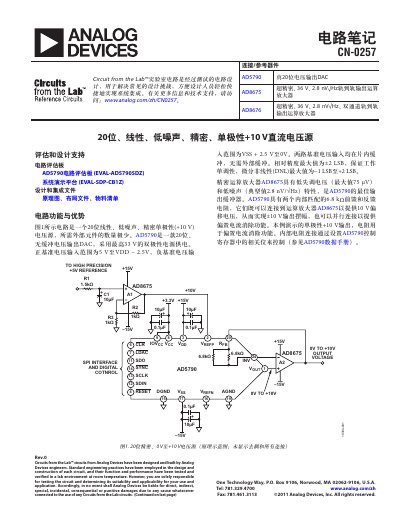

Evaluation and Design Support for a 20-Bit Linear, Low-Noise, Precision Single-Polarity +10 V DC Voltage Source
Application Note 6 pages · 1.2 MB · EN
This document describes a tested circuit design that creates a 20-bit linear, low-noise, precision unipolar +10 V DC voltage source. The design utilizes the Analog Devices AD5790 20-bit voltage output DAC and the AD8675 ultra-precision operational amplifier as an output buffer. It details how to configure the EVAL-AD5790SDZ evaluation board to achieve this specific performance.
Read onlineAnalog Devices AD5790 specifications
| Resolution | 20 Bits |
|---|---|
| Integral Nonlinearity Error | ±2 LSB |
| Gain Error Temperature Coefficient | +0.018 ppm/°C |
| Operating Temperature Range | -40°C to +125°C |
| Package | 4 mm × 5 mm LFCSP |
| Supply Voltage Range | Up to +16.5 V |
Source: Analog Devices AD5790 Datasheet
All Analog Devices AD5790 documents by type
Application Note 1
How to use the product for one specific task, with worked examples.
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
