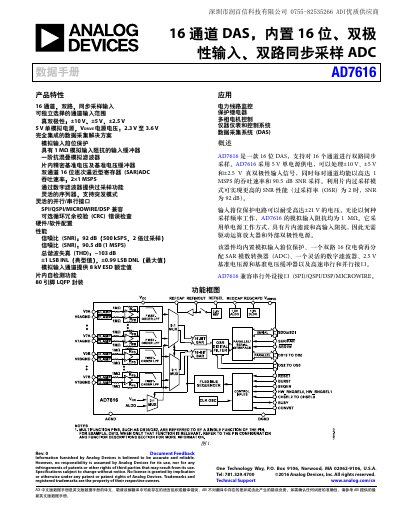

AD7616 16-Channel DAS Data Sheet
Datasheet 51 pages · 2.9 MB · ZH
The AD7616 is a 16-bit data acquisition system (DAS) that supports dual synchronous sampling of 16 channels. It features a dual-channel 16-bit successive approximation register (SAR) ADC with a throughput rate of 2 x 1 MSPS. The device operates on a single 5 V analog supply and can handle true bipolar input ranges of ±10 V, ±5 V, and ±2.5 V. It includes an on-chip precision reference voltage source and buffer, as well as flexible digital filtering options to improve signal-to-noise ratio (SNR). This manual is written in Chinese.
Read onlineAnalog Devices AD7616 specifications
| Resolution | 16 Bits |
|---|---|
| Sampling Rate (per channel pair) | 1 MSPS |
| Signal-to-Noise Ratio (SNR) @ 500 kSPS | 92 dB |
| Total Harmonic Distortion (THD) | -103 dB |
| Input Impedance | 1 MΩ |
| Power Supply Voltage (VCC) | 4.75 V to 5.25 V |
| Drive Voltage (VDRIVE) | 2.3 V to 3.6 V |
| Number of Channels | 16 Channel |
All Analog Devices AD7616 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the selectable bipolar input ranges?
The device supports true bipolar input ranges of ±10 V, ±5 V, and ±2.5 V.
Which digital interfaces are supported?
The AD7616 is compatible with SPI/QSPI/MICROWIRE/DSP protocols.
