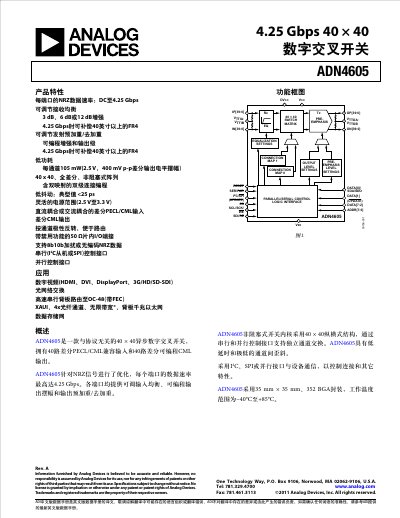

ADN4605 4.25 Gbps 40×40 Digital Crosspoint Switch
The ADN4605 is a protocol-independent 40x40 asynchronous digital crosspoint switch optimized for NRZ signals, featuring 40 differential PECL/CML compatible inputs and 40 differential programmable CML outputs. It supports data rates up to 4.25 Gbps per port and includes adjustable input equalization, programmable output swing, and output pre-emphasis/de-emphasis to compensate for channel loss in applications like digital video and optical networking.
The device utilizes a non-blocking 40x40 crossbar switch core with low latency and minimal channel-to-channel skew. It can be controlled via I2C, SPI, or parallel interfaces to manage connections and features. The ADN4605 is available in a 352-pin 35mm x 35mm BGA package with an operating temperature range of -40°C to +85°C.
Analog Devices ADN4605 specifications
| Data Rate per Channel | DC to 4.25 Gbps |
|---|---|
| Switch Configuration | 40 x 40, Non-blocking |
| Operating Temperature | -40°C to +85°C |
| Package Type | 352 BGA |
| Supply Voltage Range | 2.25 V to 3.6 V |
| Propagation Delay | 920 ps |
| Channel-to-Channel Skew | 200 ps |
All Analog Devices ADN4605 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate per channel?
The maximum data rate per channel is 4.25 Gbps for NRZ signals.
What interfaces are available for controlling the switch?
The device supports I2C, SPI, and parallel control interfaces.
What temperature range can the device operate in?
The device is rated for –40 °C to +85 °C.
From: Analog Devices ADN4605 Digital Crosspoint Switch Data Sheet
How many inputs and outputs does the ADN4605 have?
It has a 40 × 40 matrix with 40 differential inputs and 40 differential outputs.
From: Analog Devices ADN4605 Digital Crosspoint Switch Data Sheet
